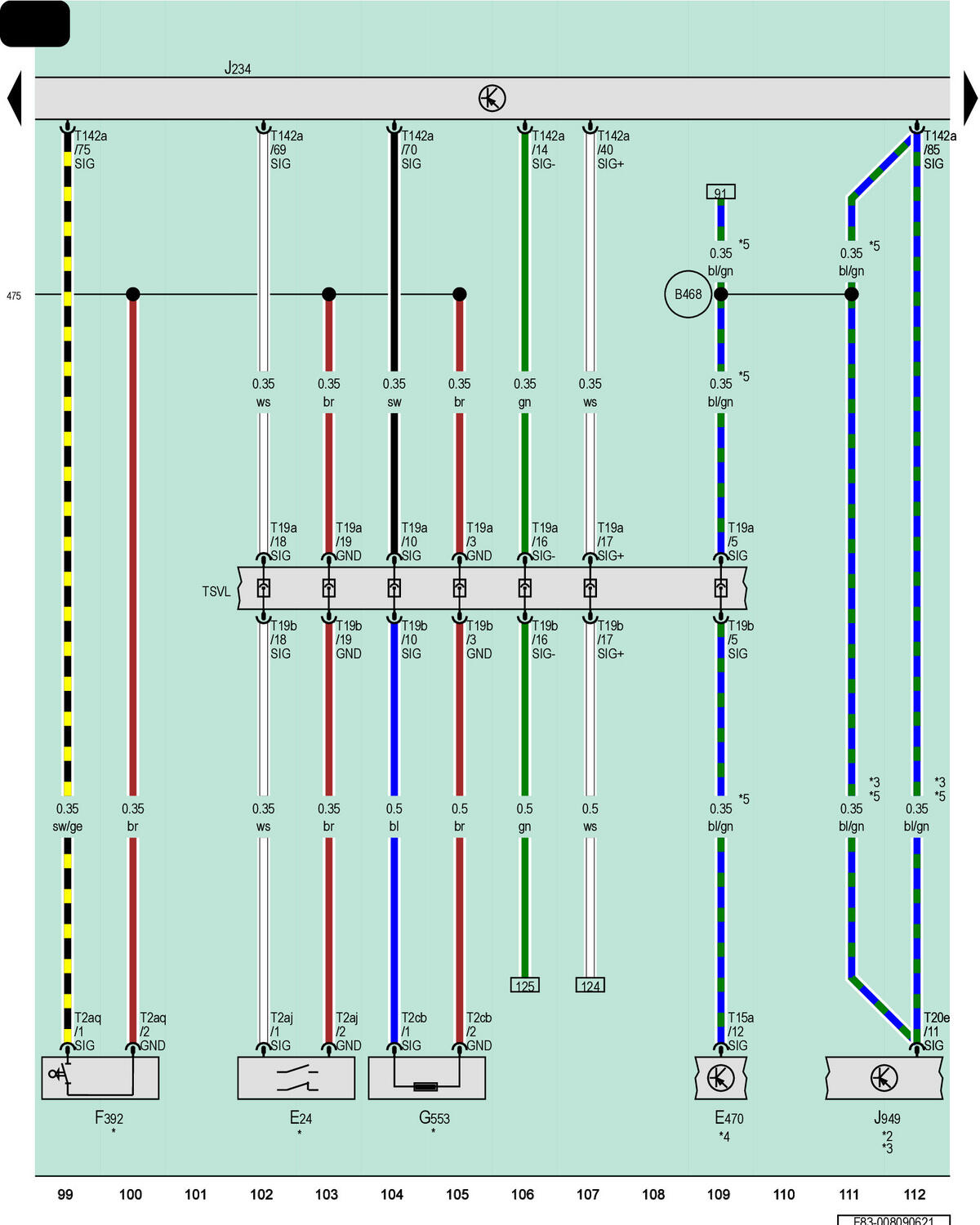

Driver Seat Belt Switch, Driver Seat Adjustment Control Head, Passenger Side Second Row Seat Belt Switch, Driver Seat Position Sensor, Airbag Control Module, Control Module For Emergency Call Module And Communication Unit

Courtesy of AUDI OF AMERICA, LLC

E24

Driver Seat Belt Switch

E470

Driver Seat Adjustment Control Head

F392

Passenger Side Second Row Seat Belt Switch

G553

Driver Seat Position Sensor

J234

Airbag Control Module

J949

Control Module for Emergency Call Module and Communication Unit

T2aj

2-Pin Connector, Black

T2aq

2-Pin Connector, Black

T2cb

2-Pin Connector

T15a

15-Pin Connector, Purple

T19a

19-Pin Connector, Black

T19b

19-Pin Connector, Black

T20e

20-Pin Connector, Black

T142a

142-Pin Connector, Yellow

TSVL

Left Front Seat Coupling Station

475

Airbag Ground Connection (in Main Wiring Harness)

B468

Connection 4 (in Main Wiring Harness)

*

Pre-Wired Component

*2

Refer to Applicable Communication Wiring Diagram

*3

For Vehicles with Emergency Call Function

*4

Refer to Applicable Seat Adjustment Wiring Diagram

*5

Depending on Equipment
