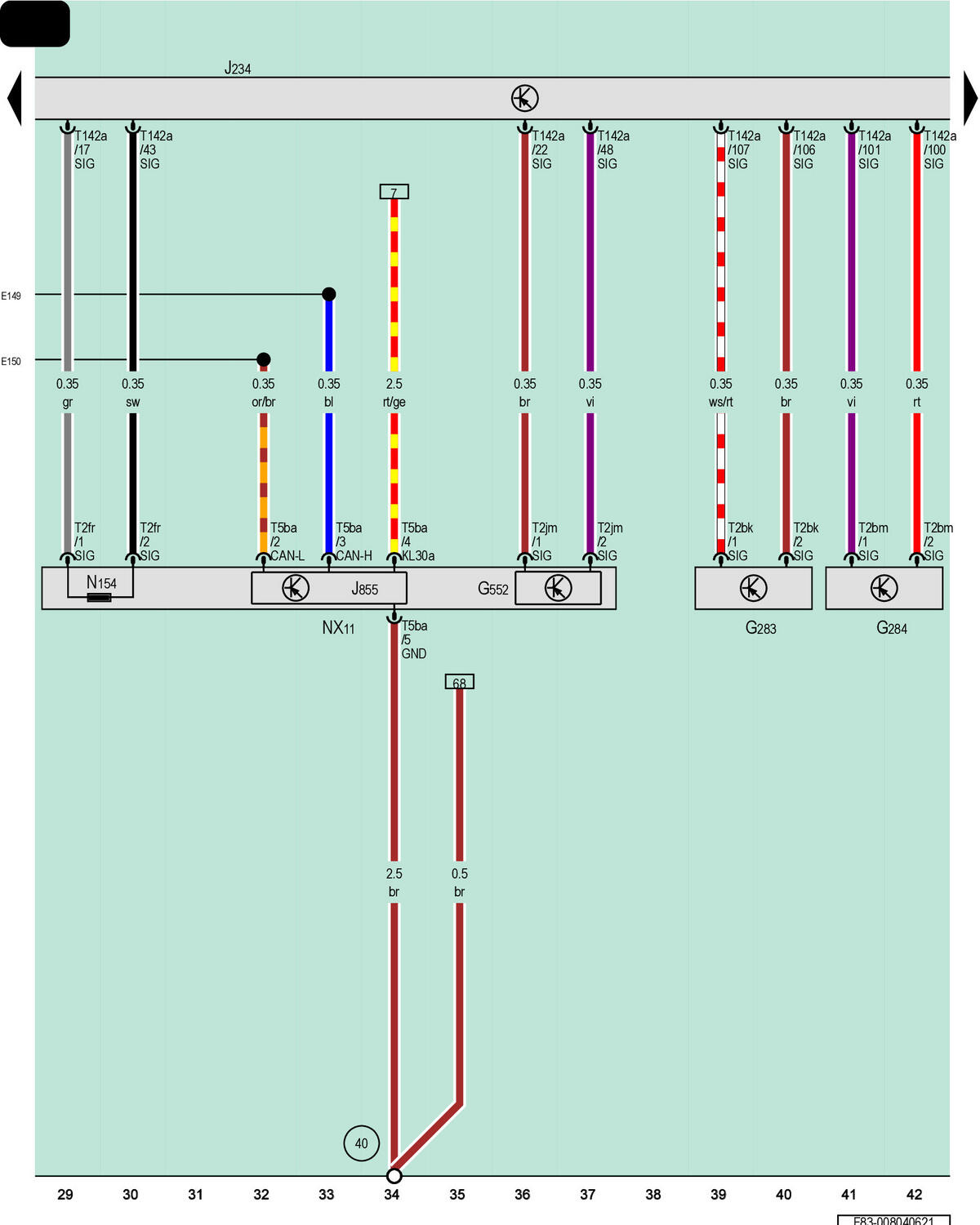

Driver Front Airbag Crash Sensor, Passenger Side Front Airbag Crash Sensor, Front Passenger Belt Force Limiter, Airbag Control Module, Right Front Seat Belt TENSIONER Control Module, Right Front Seat Belt, Front Passenger Seat Belt TENSIONER Igniter 1

Courtesy of AUDI OF AMERICA, LLC

G283

Driver Front Airbag Crash Sensor

G284

Passenger Side Front Airbag Crash Sensor

G552

Front Passenger Belt Force Limiter

J234

Airbag Control Module

J855

Right Front Seat Belt Tensioner Control Module

NX11

Right Front Seat Belt

N154

Front Passenger Seat Belt Tensioner Igniter 1

T2bk

2-Pin Connector, Yellow

T2bm

2-Pin Connector, Yellow

T2fr

2-Pin Connector, Yellow

T2jm

2-Pin Connector, Yellow

T5ba

5-Pin Connector, Naturally Cloudy

T142a

142-Pin Connector, Yellow

40

Ground Connection Under Right Rear Bench Seat

E149

Connection 1 (CAN Bus Airbag Control Module, High)

E150

Connection 1 (CAN Bus Airbag Control Module, Low)
