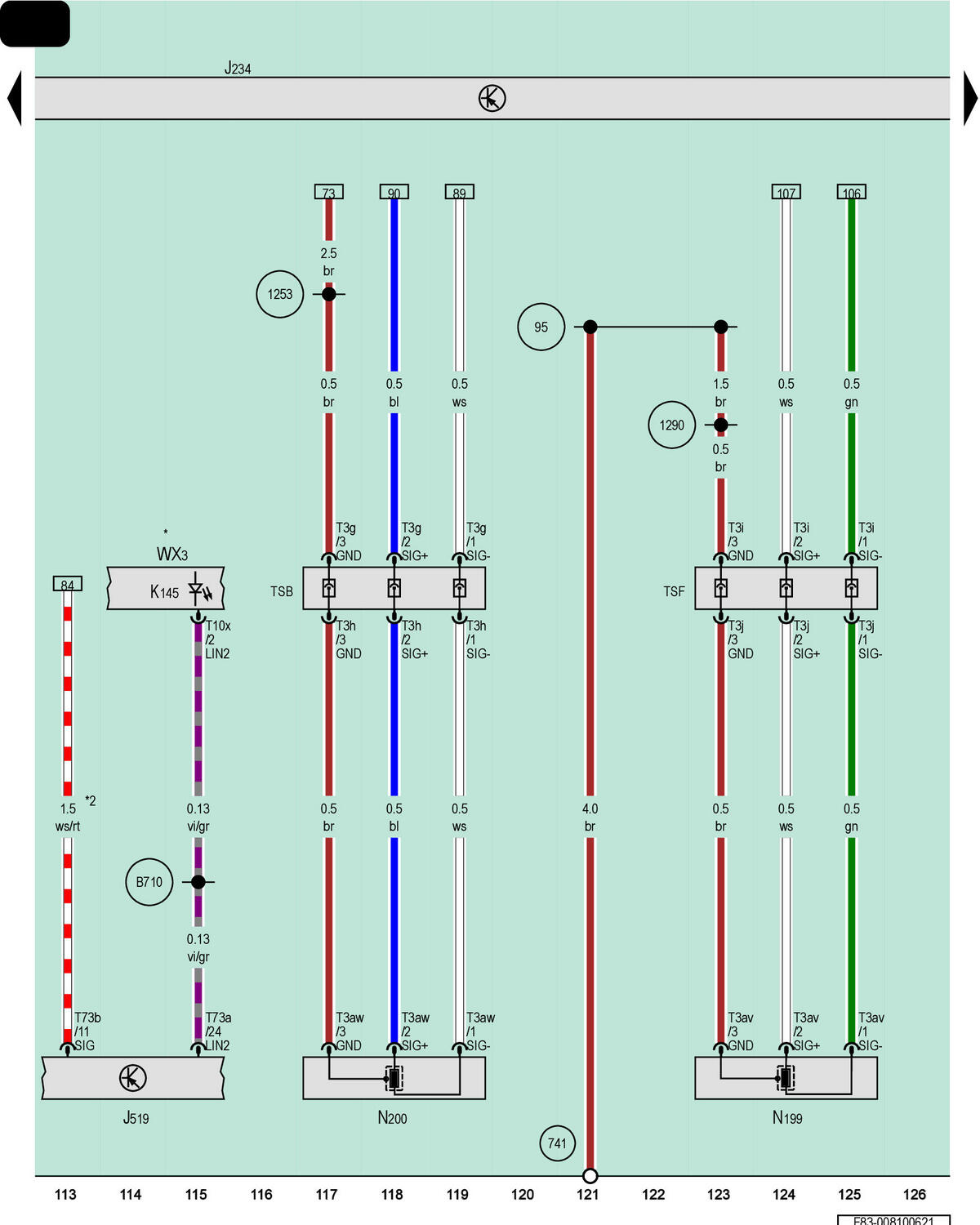

Airbag Control Module, Vehicle Electrical System Control Module, Driver Thorax Airbag Igniter, Front Passenger Thorax Airbag Igniter, Front Roof Module
J234
Airbag Control Module
J519
Vehicle Electrical System Control Module
K145
Front Passenger Airbag -Disabled- Indicator Lamp
N199
Driver Thorax Airbag Igniter
N200
Front Passenger Thorax Airbag Igniter
T3av
3-Pin Connector
T3aw
3-Pin Connector
T3g
3-Pin Connector, Yellow
T3h
3-Pin Connector, Yellow
T3i
3-Pin Connector, Yellow
T3j
3-Pin Connector, Yellow
T10x
10-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
TSB
Front Passenger Seat Backrest Coupling Point
TSF
Driver Seat Backrest Coupling Point
WX3
Front Roof Module
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
741
Ground Connection Under Left Front Seat
1253
Ground Connection 6 (in Seat Adjustment Wiring Harness)
1290
Ground Connection 1 (in Left Front Seat Wiring Harness)
B710
LIN Bus Connection 5 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Interior Lamps
*2
For Vehicles with US Equipment
