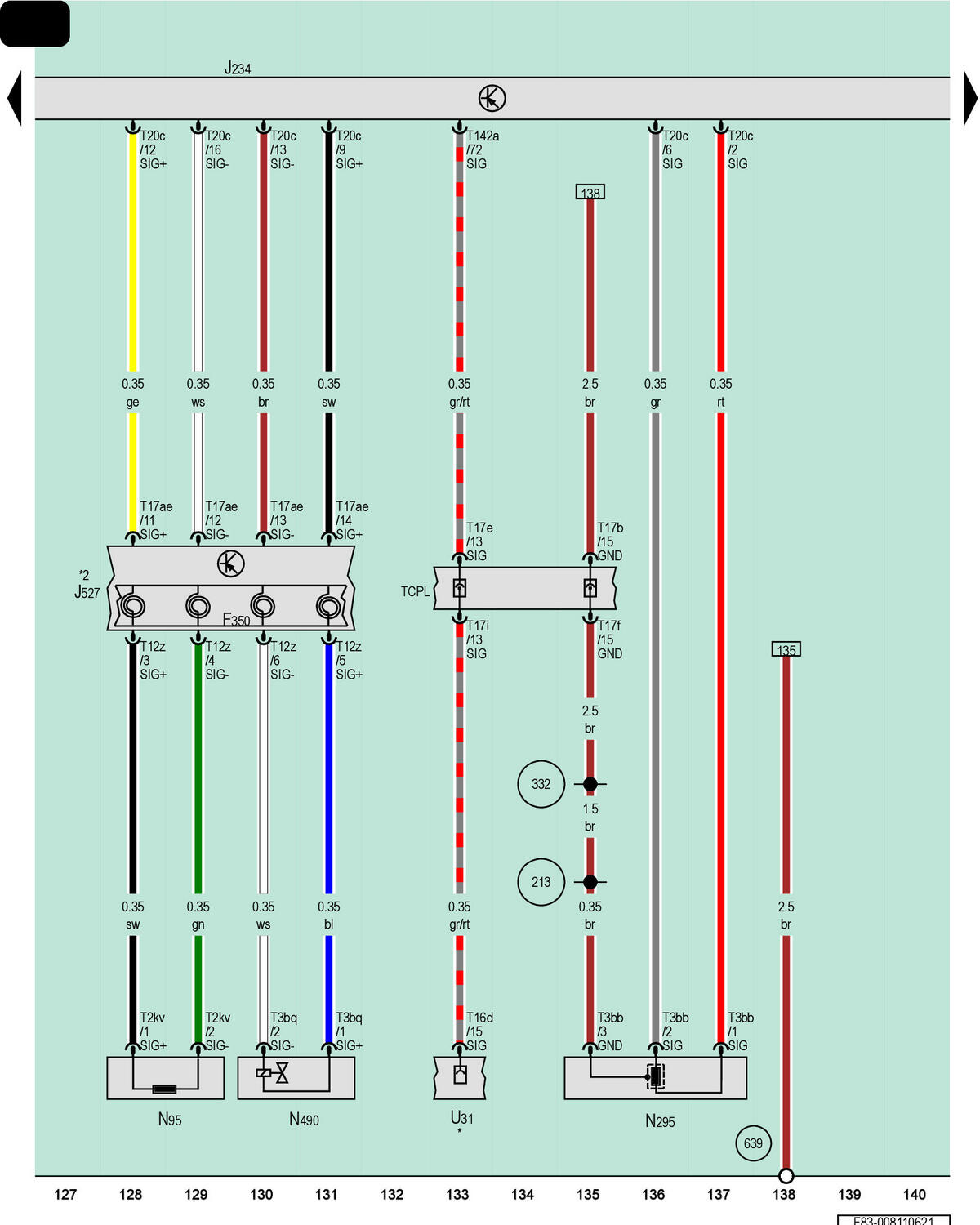

Airbag Control Module, Steering Column Electronics Control Module, Driver Airbag Igniter, Driver Knee Airbag Igniter, Driver Airbag Release Valve Igniter, Coupling Point On Instrument Panel, Left
F350
Spiral Spring
J234
Airbag Control Module
J527
Steering Column Electronics Control Module
N95
Driver Airbag Igniter
N295
Driver Knee Airbag Igniter
N490
Driver Airbag Release Valve Igniter
T2kv
2-Pin Connector
T3bb
3-Pin Connector, Yellow
T3bq
3-Pin Connector
T12z
12-Pin Connector
T16d
16-Pin Connector, Black
T17ae
17-Pin Connector, Yellow
T17b
17-Pin Connector, Brown
T17e
17-Pin Connector, Black
T17f
17-Pin Connector, Brown
T17i
17-Pin Connector, Black
T20c
20-Pin Connector, Yellow
T142a
142-Pin Connector, Yellow
TCPL
Coupling Point on Instrument Panel, Left
U31
Diagnostic Connection
213
Ground Connection (in Instrument Panel Wiring Harness)
332
Ground Connection 4 (in Instrument Panel Wiring Harness)
639
Ground Connection on Left A-Pillar
*
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
Refer to Applicable Steering Wheel Wiring Diagram
