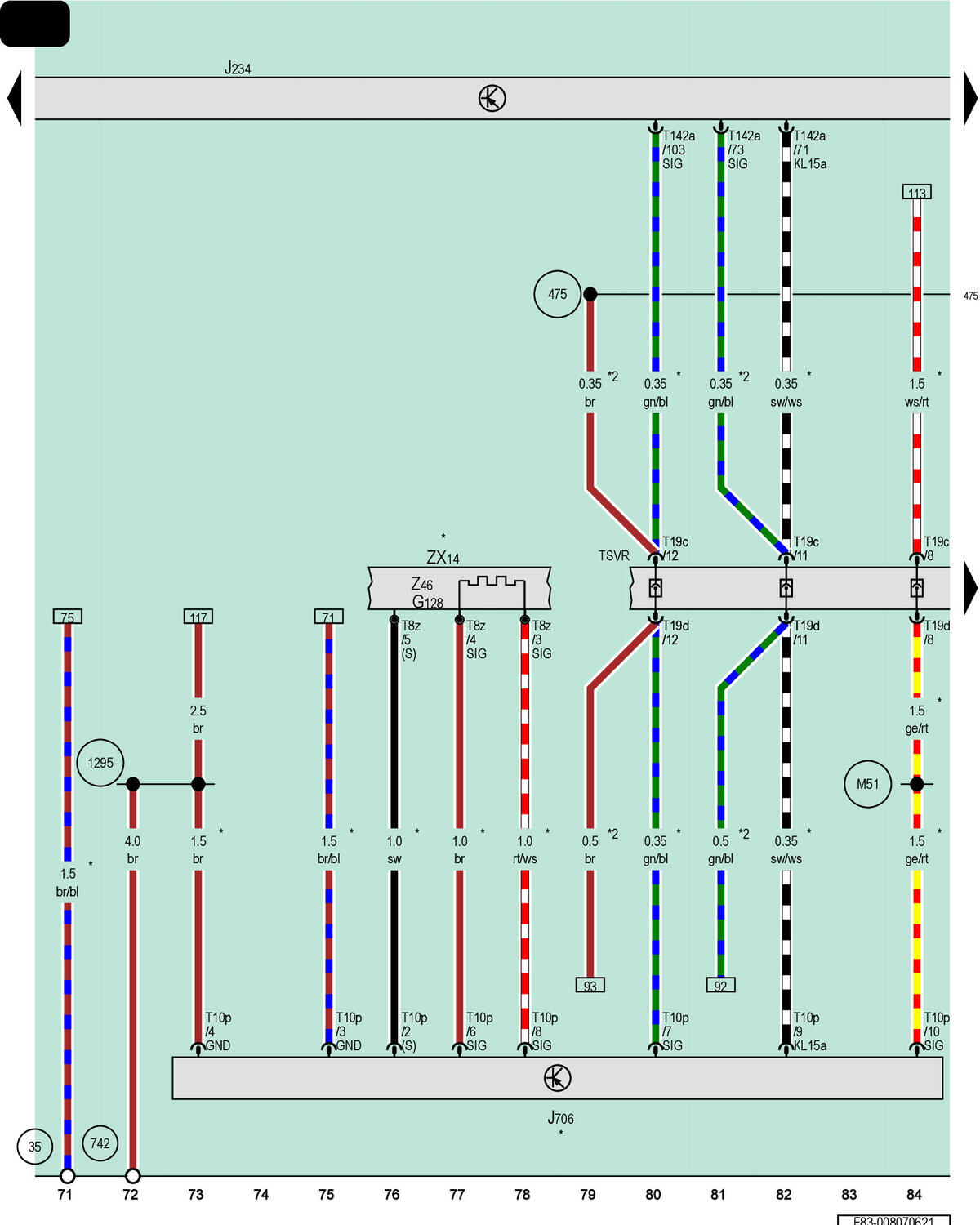

Airbag Control Module, Passenger Occupant Detection System Control Module, Front Passenger Seat Heating Element With Passenger Occupant Detection System Control Module, Ground Connection Under Front Passenger Seat

Courtesy of AUDI OF AMERICA, LLC

G128

Passenger Seat Occupant Detection Sensor

J234

Airbag Control Module

J706

Passenger Occupant Detection System Control Module

T8z

8-Pin Connector, Black

T10p

10-Pin Connector, Black

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

T142a

142-Pin Connector, Yellow

TSVR

Right Front Seat Coupling Station

ZX14

Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module

Z46

Right Front Seat Heating Element

35

Ground Connection Under Front Passenger Seat

475

Airbag Ground Connection (in Main Wiring Harness)

742

Ground Connection Under Right Front Seat

1295

Ground Connection 2 (in Right Front Seat Wiring Harness)

M51

Connection 1 (in Front Passenger Seat Wiring Harness)

*

For Vehicles with US Equipment

*2

For Vehicles Without US Equipment
