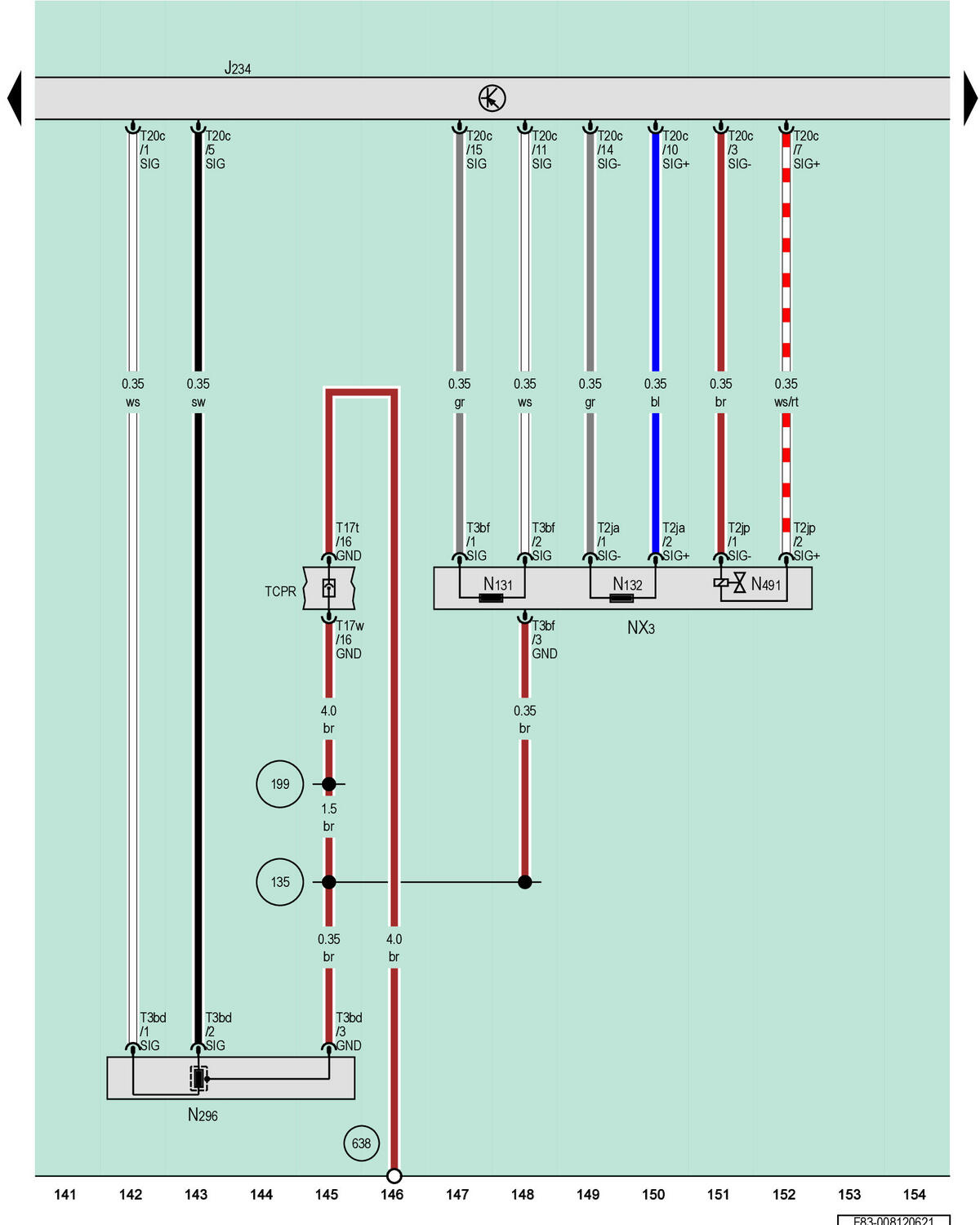

Airbag Control Module, Front Passenger Airbag Unit, Front Passenger Airbag Igniter 1, Front Passenger Airbag Igniter 2, Front Passenger Knee Airbag Igniter, Front Passenger Airbag Release Valve Igniter
J234
Airbag Control Module
NX3
Front Passenger Airbag Unit
N131
Front Passenger Airbag Igniter 1
N132
Front Passenger Airbag Igniter 2
N296
Front Passenger Knee Airbag Igniter
N491
Front Passenger Airbag Release Valve Igniter
T2ja
2-Pin Connector, Yellow
T2jp
2-Pin Connector, Yellow
T3bd
3-Pin Connector, Yellow
T3bf
3-Pin Connector, Yellow
T17t
17-Pin Connector, Blue
T17w
17-Pin Connector, Blue
T20c
20-Pin Connector, Yellow
TCPR
Coupling Point on Instrument Panel, Right
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
199
Ground Connection 3 (in Instrument Panel Wiring Harness)
638
Ground Connection on Right A-Pillar
