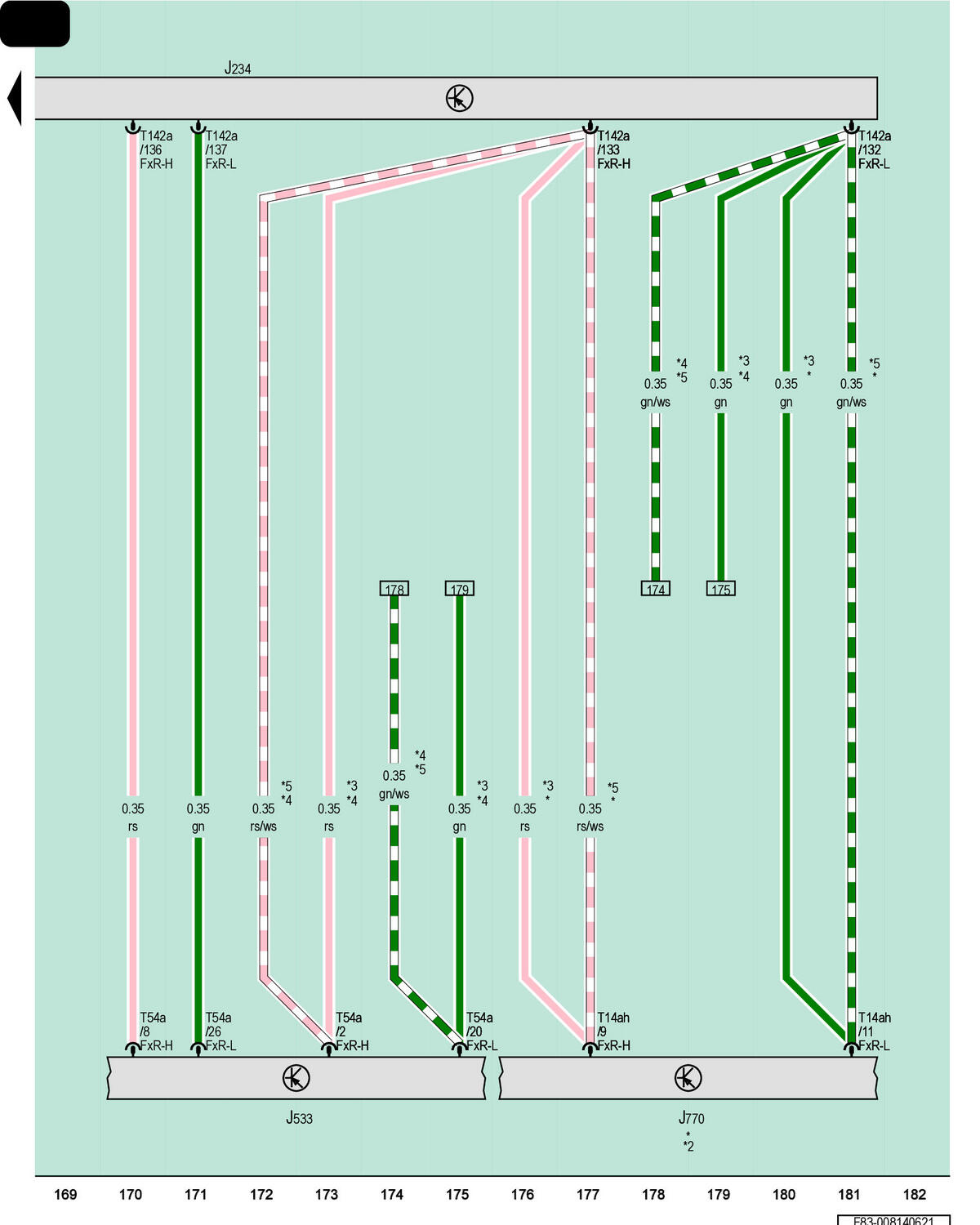

Airbag Control Module, Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module 2
J234
Airbag Control Module
J533
Data Bus on Board Diagnostic Interface
J770
Lane Change Assistance Control Module 2
T14ah
14-Pin Connector, Black
T54a
54-Pin Connector, Black
T142a
142-Pin Connector, Yellow
*
For Vehicles with Lane Change Assistance
*2
Refer to Applicable Lane Change Assistance Wiring Diagram
*3
Omitted as a Running Change
*4
For Vehicles Without Lane Change Assistance
*5
Running Change
