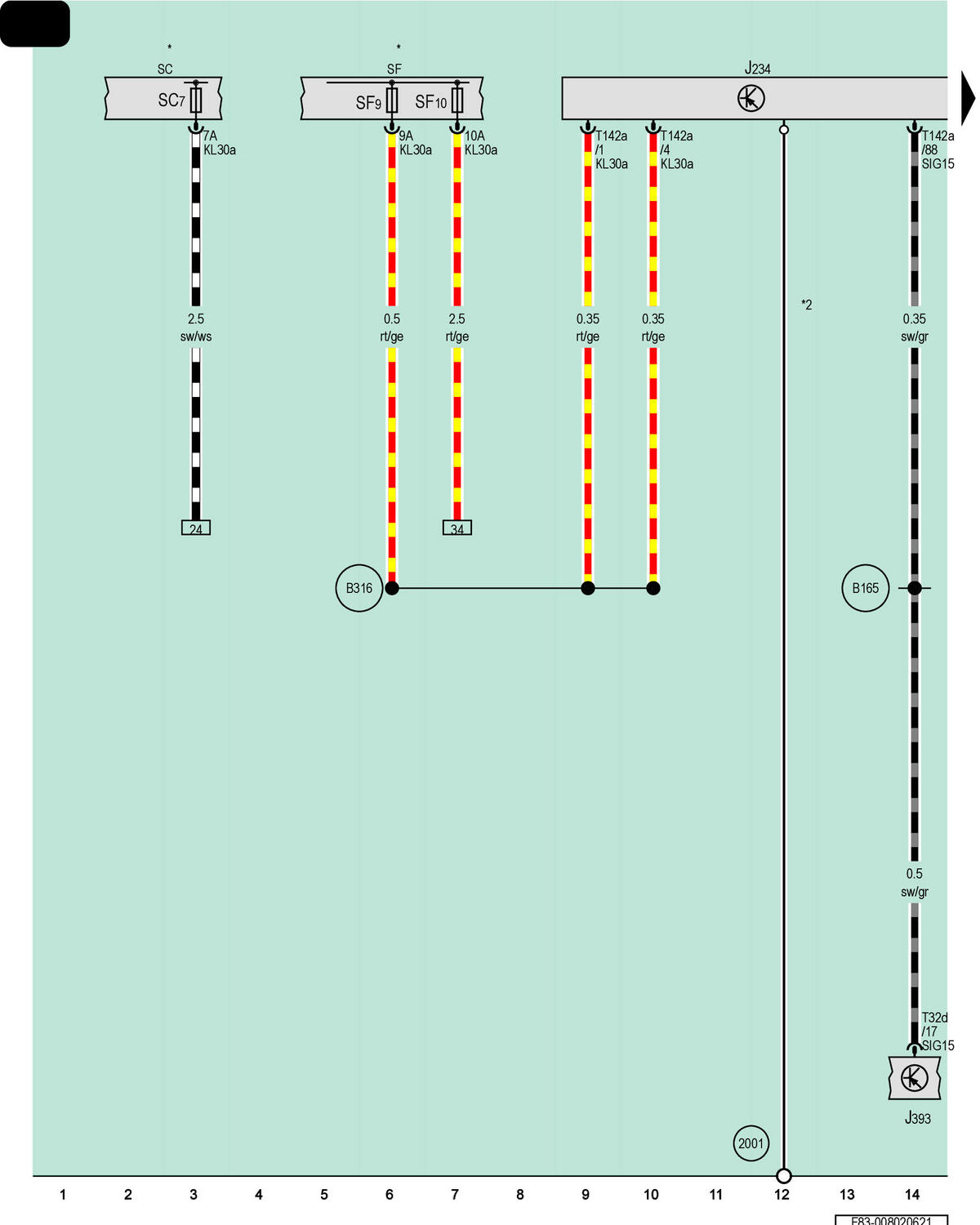

Airbag Control Module, Comfort System Central Control Module
J234
Airbag Control Module
J393
Comfort System Central Control Module
SC
Fuse Panel C
SC7
Fuse 7 (On Fuse Panel C)
SF
Fuse Panel F
SF9
Fuse 9 (On Fuse Panel F)
SF10
Fuse 10 (On Fuse Panel F)
T32d
32-Pin Connector, Black
T142a
142-Pin Connector, Yellow
2001
Frame Ground
B165
Positive Connection 2 (15) (in Interior Wiring Harness)
B316
Positive Connection 2 (30a) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Ground Supply via the Housing
