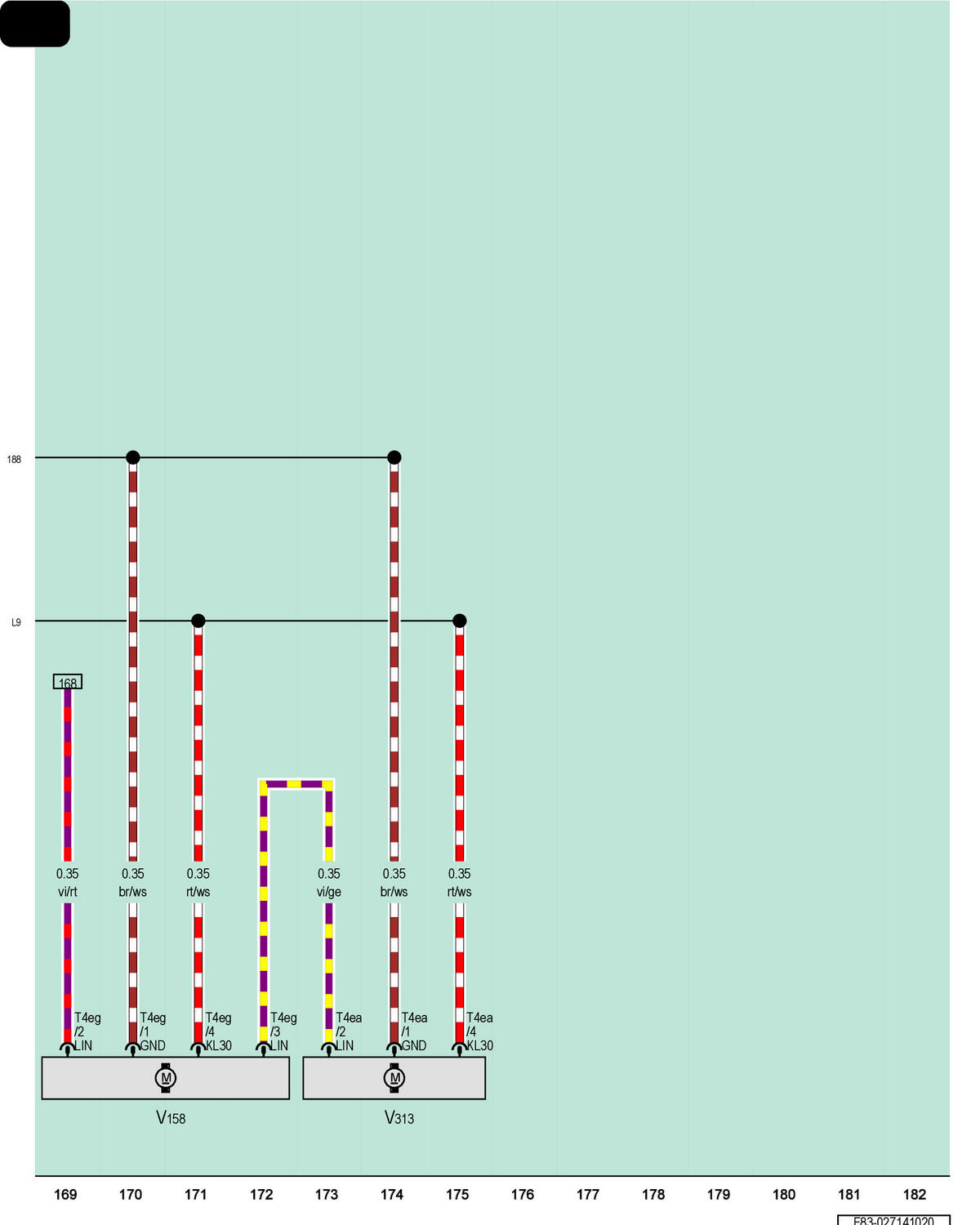

Left Temperature Control Door Motor, Left Rear Temperature Control Door Motor

Courtesy of AUDI OF AMERICA, LLC

T4ea

4-Pin Connector, Black

T4eg

4-Pin Connector, Black

V158

Left Temperature Control Door Motor

V313

Left Rear Temperature Control Door Motor

188

Ground Connection 3 (in A/C Wiring Harness)

Connection 1 (in A/C System Wiring Harness)
