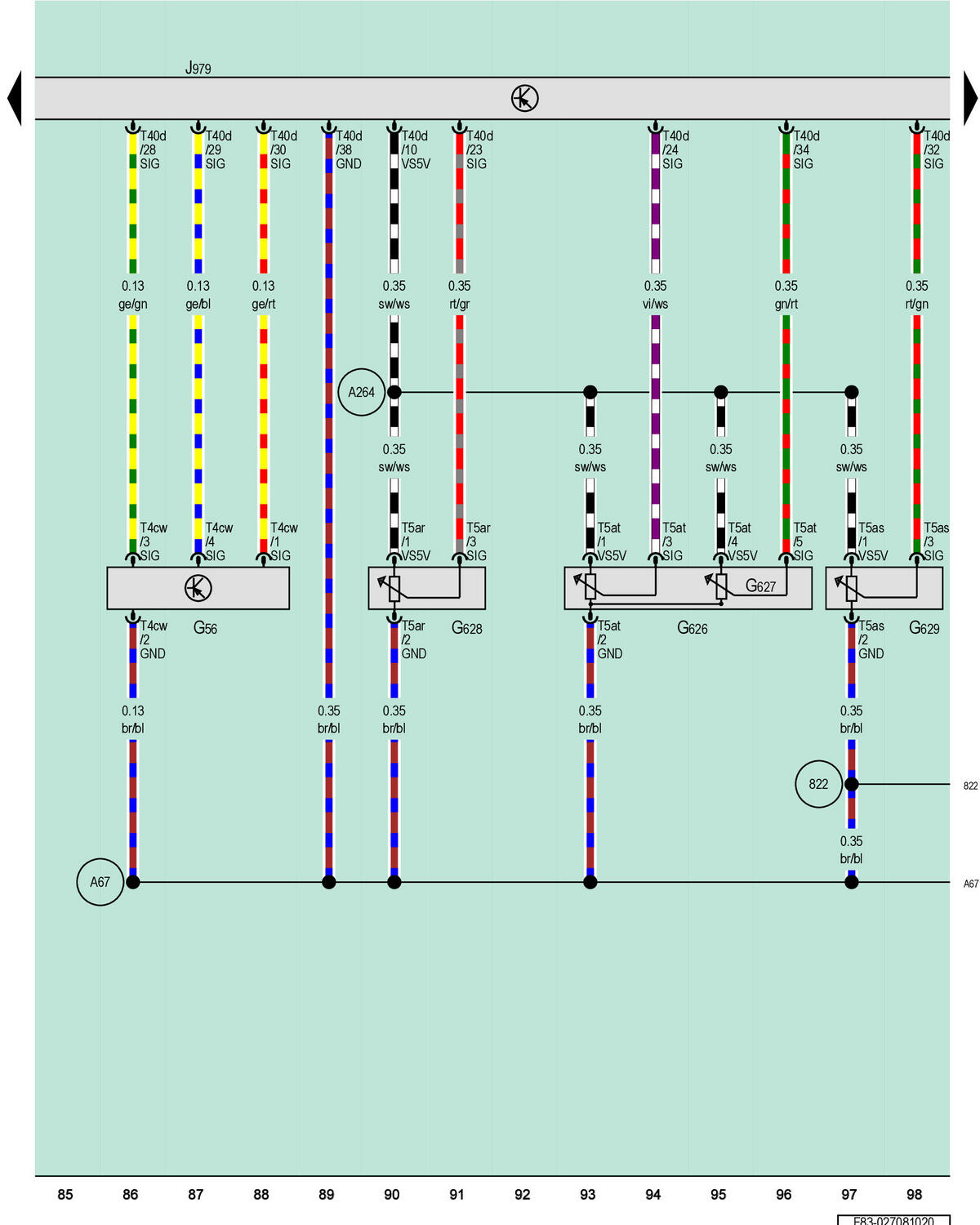

Instrument Panel Temperature Sensor, Position Sensor In Left Center Vent, Position Sensor In Left Side Vent, Position Sensor In Right Side Vent, Heating And Air Conditioning Control Module

Courtesy of AUDI OF AMERICA, LLC

G56

Instrument Panel Temperature Sensor

G626

Position Sensor in Left Center Vent

G627

Position Sensor in Right Center Vent

G628

Position Sensor in Left Side Vent

G629

Position Sensor in Right Side Vent

J979

Heating and Air Conditioning Control Module

T4cw

4-Pin Connector, Black

T5ar

5-Pin Connector, Black

T5as

5-Pin Connector, Black

T5at

5-Pin Connector, Black

T40d

40-Pin Connector, Black

822

Ground Connection 8 (in Instrument Panel Wiring Harness)

A67

A/C System Connection (31) (in Instrument Panel Wiring Harness)

A264

Connection 1 (5V) (in Instrument Panel Wiring Harness)
