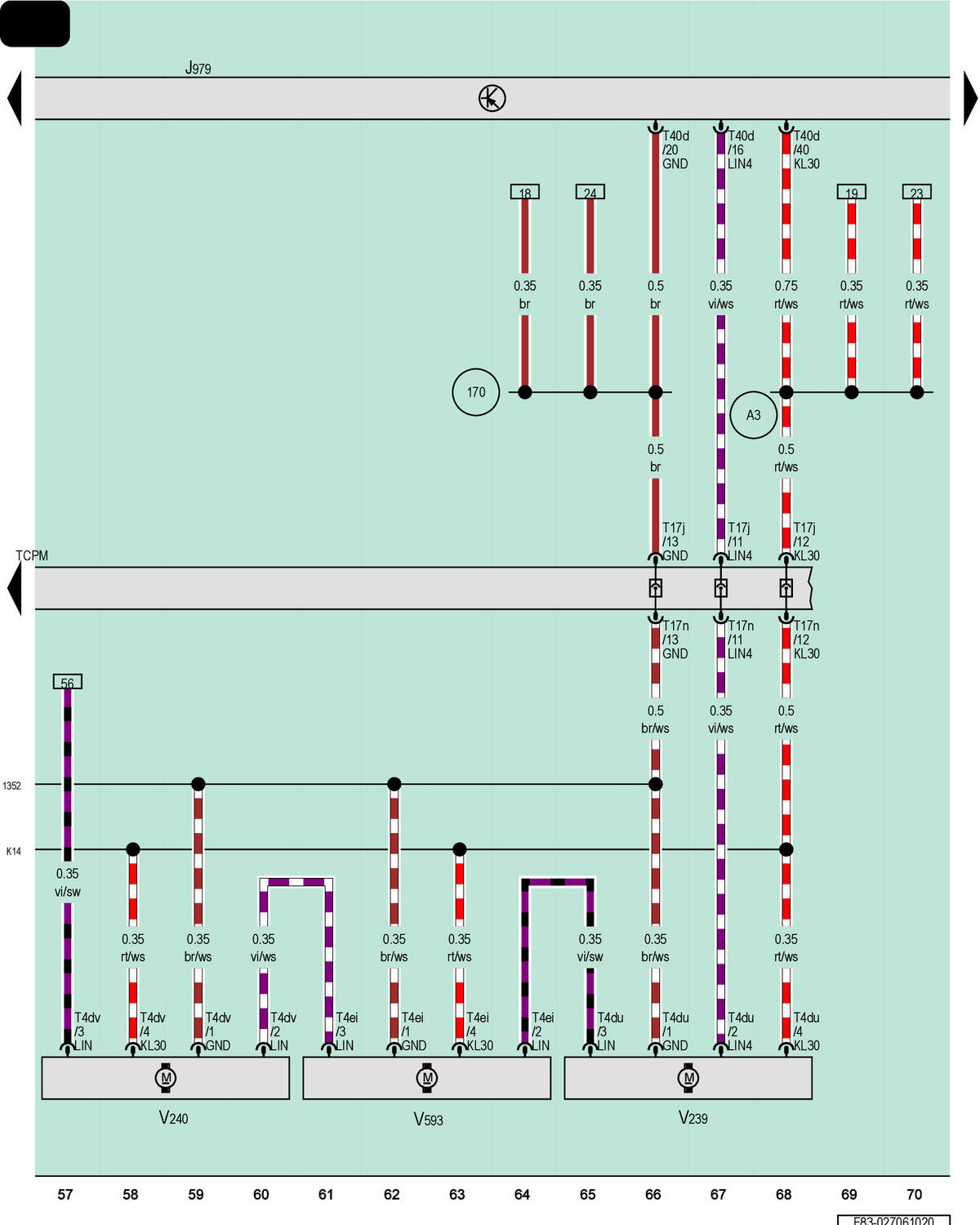

Heating And Air Conditioning Control Module, Left Rear Air Door Motor, Right Rear Air Door Motor, Left Rear Air Distribution Motor
J979
Heating and Air Conditioning Control Module
T4du
4-Pin Connector, Black
T4dv
4-Pin Connector, Black
T4ei
4-Pin Connector, Black
T17j
17-Pin Connector, Brown
T17n
17-Pin Connector, Brown
T40d
40-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
V239
Left Rear Air Door Motor
V240
Right Rear Air Door Motor
V593
Left Rear Air Distribution Motor
170
Ground Connection 1 (in A/C System/Climatronic Controls Wiring Harness)
1352
Ground Connection 5 (in Center Console Wiring Harness)
A3
Positive Connection (58) (in Instrument Panel Wiring Harness)
K14
Connection (30) (in Center Console Wiring Harness)
