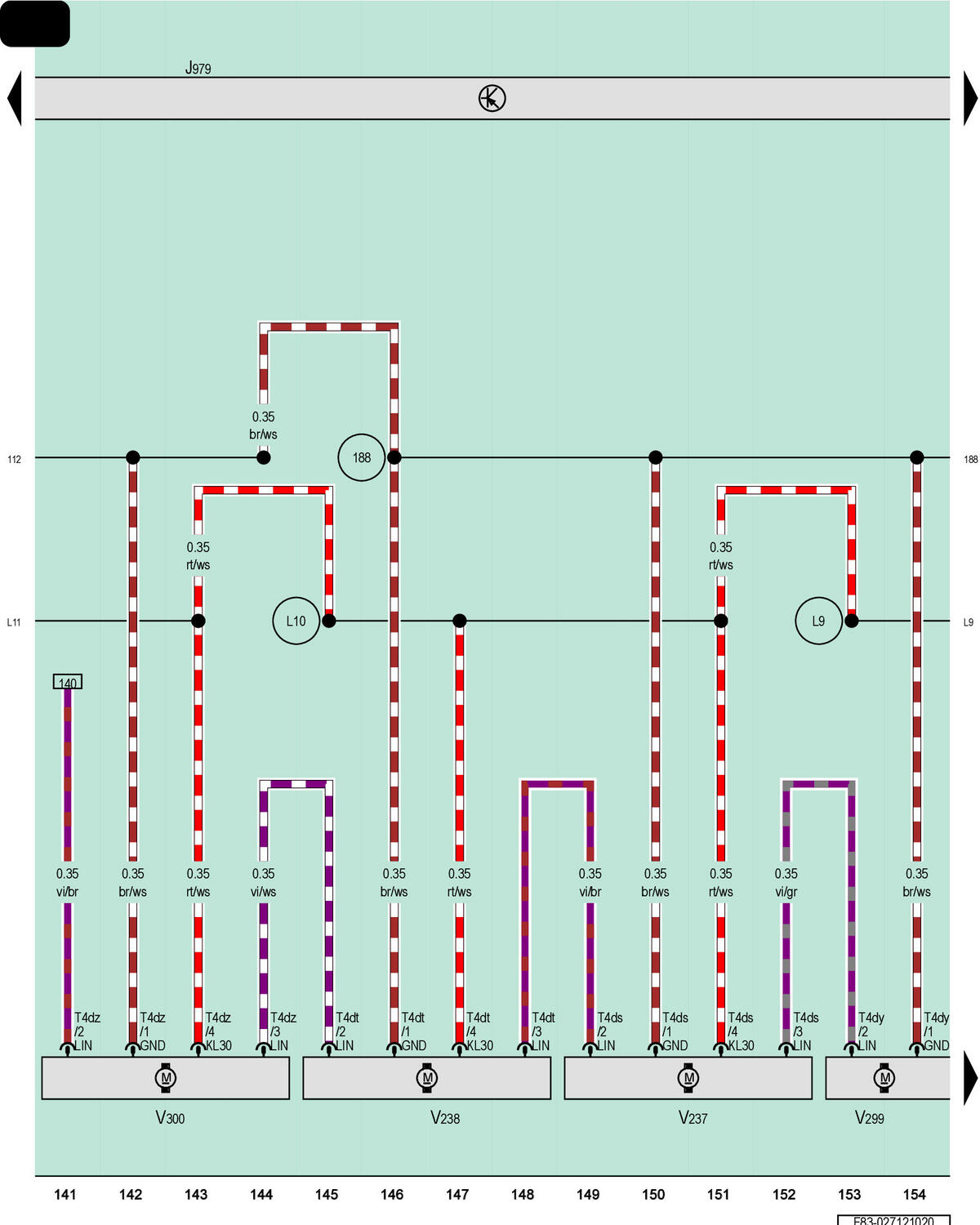

Heating And Air Conditioning Control Module, Left Front Upper Body Vent Adjustment Motor, Right Front Upper Body Vent Adjustment Motor, Left Side Vent Adjustment Motor, Right Side Vent Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

J979

Heating and Air Conditioning Control Module

T4ds

4-Pin Connector, Black

T4dt

4-Pin Connector, Black

T4dy

4-Pin Connector, Black

T4dz

4-Pin Connector, Black

V237

Left Front Upper Body Vent Adjustment Motor

V238

Right Front Upper Body Vent Adjustment Motor

V299

Left Side Vent Adjustment Motor

V300

Right Side Vent Adjustment Motor

112

Ground Connection 2 (in A/C Wiring Harness)

188

Ground Connection 3 (in A/C Wiring Harness)

L9

Connection 1 (in A/C System Wiring Harness)

L10

Connection 2 (in A/C System Wiring Harness)

L11

Connection 3 (in A/C System Wiring Harness)
