Overview - Window Guides And Window Shaft Strips

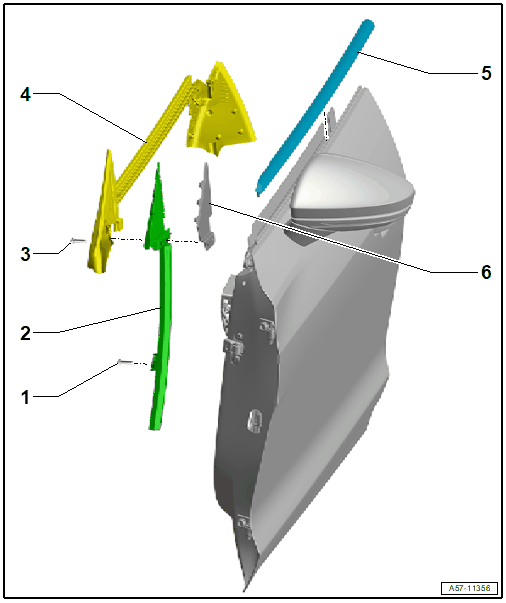

Fig 1: Exploded View Of Window Guides And Window Shaft Strips

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 8 Nm
2. Door Window Guide Rail
   • Refer to Inner Window Shaft Strip, Removing and Installing  .
3. Bolt
   • Quantity: 2
   • 8 Nm
4. Inner Window Shaft Strip
   • Refer to Inner Window Shaft Strip, Removing and Installing  .
5. Outer Window Shaft Strip
   • Refer to Outer Window Shaft Strip, Removing and Installing  .
6. A-Pillar Trim
   • Refer to Overview - A-Pillar Trim .
