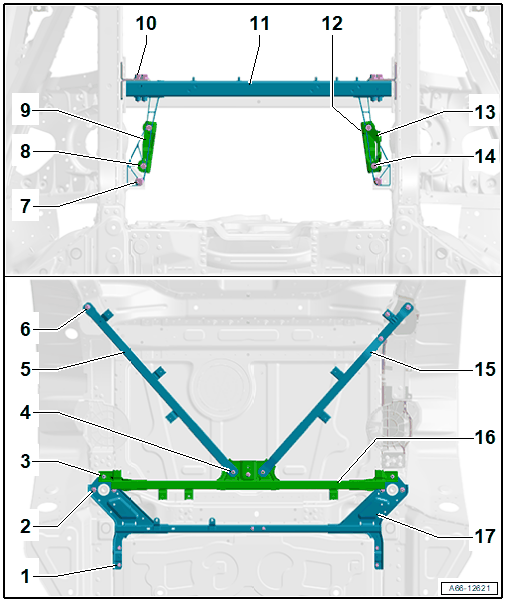

Overview - Underbody Bracing

GWWA66-12621

Courtesy of AUDI OF AMERICA, LLC

Nut
- Quantity: 4
- Refer to OVERVIEW - SUBFRAME .
Bolt
- Quantity: 4
- Refer to OVERVIEW - SUBFRAME .
Nut
- Quantity: 2
- 8 Nm
Nut
- Quantity: 2
- 8 Nm
Right Crossbrace
- Refer to CROSSBRACE, REMOVING AND INSTALLING
Bolt
- Quantity: 2
- 8 Nm
Bolt
- Quantity: 2
- 55 Nm
Bolt
- Quantity: 8
- 2 Nm
High-Voltage Distributor Retaining Plate Bracket
Bolt
- Quantity: 4
- Replace after removing
- 50 Nm + 180°
Front Lower Crossmember
- Refer to LOWER CROSSMEMBER, REMOVING AND INSTALLING
High-Voltage Distributor Retaining Plate Bracket
Change Over and Mixing Valve Bracket
Bolt
- Quantity: 8
- 2 Nm
Left Crossbrace
Crossbrace
- Refer to CROSSBRACE, REMOVING AND INSTALLING
Brace
- Refer to OVERVIEW - SUBFRAME .
