Overview - Spoiler

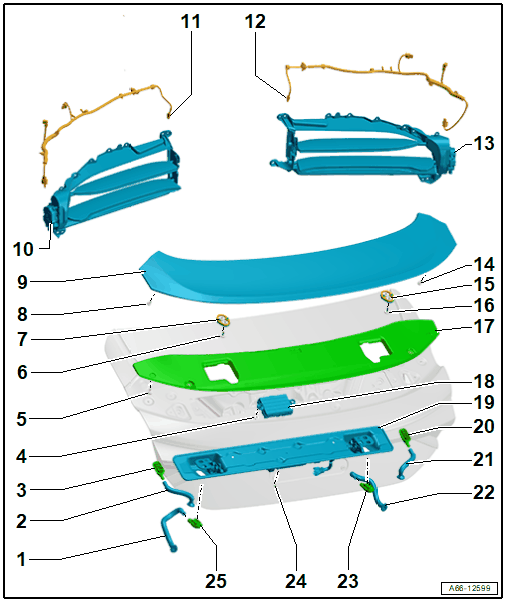

Fig 1: Exploded View Of Spoiler

Courtesy of AUDI OF AMERICA, LLC

1. Spoiler Water Drain Hose
   • Refer to WATER DRAIN HOSE, REMOVING AND INSTALLING
2. Rear Lid Water Drain Hose
   • Refer to WATER DRAIN HOSE, REMOVING AND INSTALLING
3. Rear Lid Water Drain Mount
4. Nut
   • Quantity: 2
   • 3 Nm
5. Clip with Foam Seal
   • Quantity: 11
6. Bolt
   • Quantity: 2
   • Replace after removing
   • 8 Nm
7. Adjuster Mechanism with Foam Seal
   • Refer to SPOILER, ADJUSTING
8. Stop Buffer
   • Quantity: 2
9. Spoiler Blade
   • Refer to SPOILER BLADE, REMOVING AND INSTALLING
10. Left Radiator Shutter
11. Left Cooling Air Door Position Sensor -G794-
12. Right Cooling Air Door Position Sensor -G795-
13. Right Radiator Shutter
14. Stop Buffer
    • Quantity: 2
15. Adjuster
    • Refer to SPOILER, ADJUSTING
16. Bolt
    • Quantity: 2
    • Replace after removing
    • 8 Nm
17. Spoiler Cover
    • Refer to SPOILER COVER, REMOVING AND INSTALLING
18. Rear Spoiler Control Module -J223-
    • Refer to REAR SPOILER CONTROL MODULE J223, REMOVING AND INSTALLING
19. Mount with Spoiler Drive Unit
    • With Rear Spoiler Stop Switch 1 -F135-
    • Refer to Spoiler, Removing and Installing  .
20. Rear Lid Water Drain Mount
21. Rear Lid Water Drain Hose
    • Refer to WATER DRAIN HOSE, REMOVING AND INSTALLING
22. Spoiler Water Drain Hose
    • Refer to WATER DRAIN HOSE, REMOVING AND INSTALLING
23. Spoiler Water Drain Mount
24. Nut
    • Quantity: 14
    • Replace after removing
    • Tightening specification and sequence. Refer to Fig 2.
25. Spoiler Water Drain Mount

Spoiler - Tightening Specification and Sequence

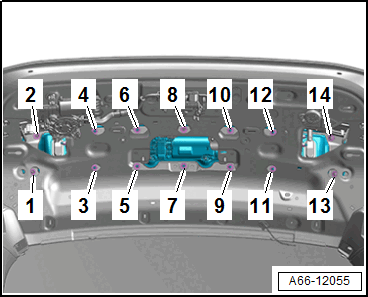

Fig 2: Spoiler - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC
