Overview - Wheel Arch Trims

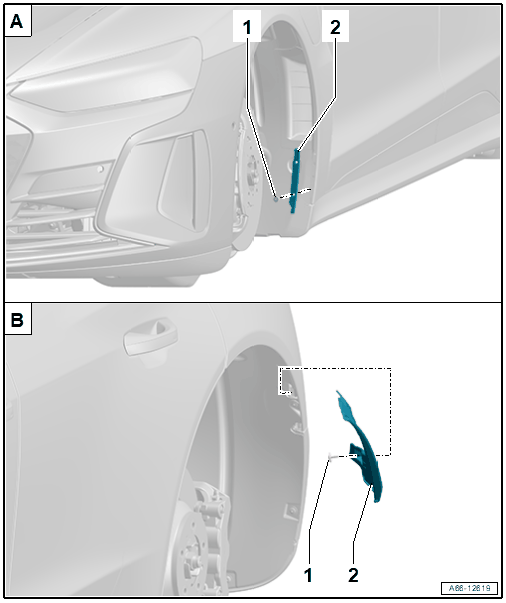

GWWA66-12619Courtesy of AUDI OF AMERICA, LLC
  1. A -  Front Wheel Arch Trim
  2. 1 -  Expanding Rivet
    • Quantity: 2
  3. 2 -  Fender Stone Chip Protection
  4. B -  Rear Wheel Arch Trim
  5. 1 -  Bolt
    • Quantity: 2
    • 3 Nm
  6. 2 -  Wheel Cover
