Overview - B-Pillar Trim

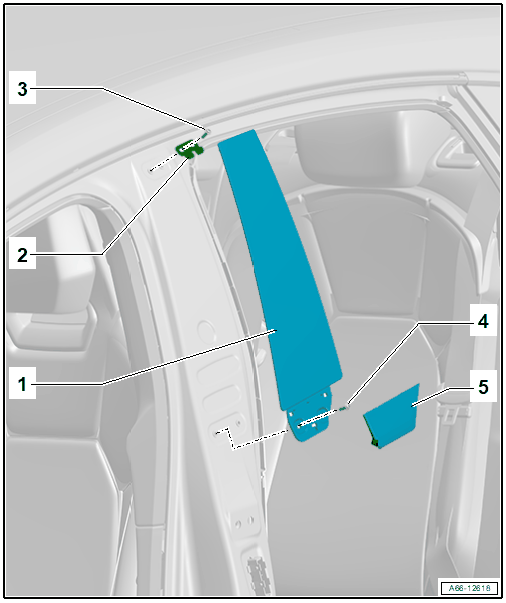

Fig 1: Exploded View Of B-Pillar Trim
GWWA66-12618Courtesy of AUDI OF AMERICA, LLC
  1. B-Pillar Trim
  2. Mount
  3. Bolt
    • Quantity: 2
    • 4 Nm
  4. Bolt
    • Quantity: 2
    • 4 Nm
  5. Cover
