Overview - Rear Wheel Housing Liner

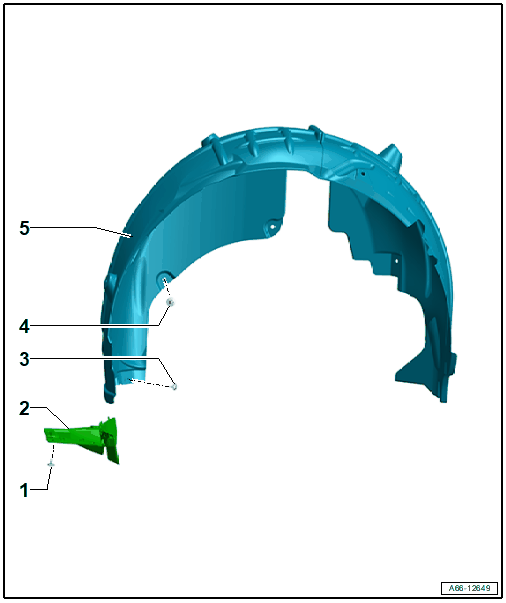

Fig 1: Exploded View Of Rear Wheel Housing Liner
GWWA66-12649Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 2 Nm
  2. Wheel Spoiler
  3. Bolt
    • Quantity: 7
    • 2.5 Nm
  4. Nut
    • Quantity: 6
    • 2.5 Nm
  5. Wheel Housing Liner
