CROSSBRACE, Removing And Installing: Removing

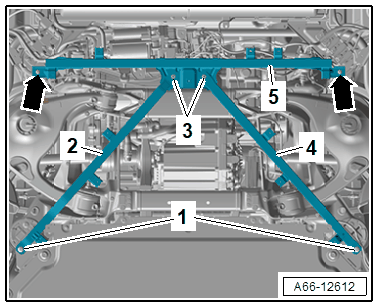

Complete Crossbrace

-- Remove the cover and the rear underbody trim panel. Refer to Overview - Underbody Trim Panels  .

-- Remove the nuts -arrows- and bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the crossbrace -5-.

Left and Right Crossbrace

-- Remove the cover and the rear underbody trim panel. Refer to Overview - Underbody Trim Panels  .

-- Remove the nuts -3- and bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the crossbraces -2- and -4-.
