Water Drain Hose, Removing And Installing: Removing

-- Remove the rear lid tail lamp. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .

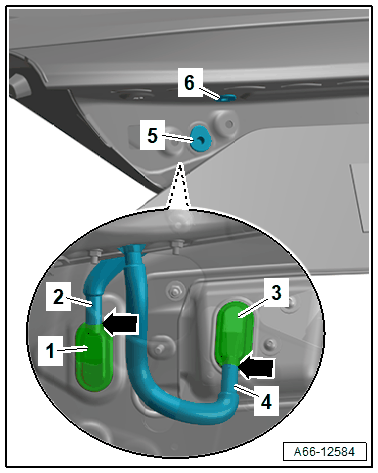

-- Remove the water drain hoses -2- and -4- on the connections for the mounts -1- and -3-.

GWWA66-12584Courtesy of AUDI OF AMERICA, LLC

-- Push through the grommet -5- and -6- outward and guide the water drain hoses out of the rear lid.
