Adjustment Dimensions

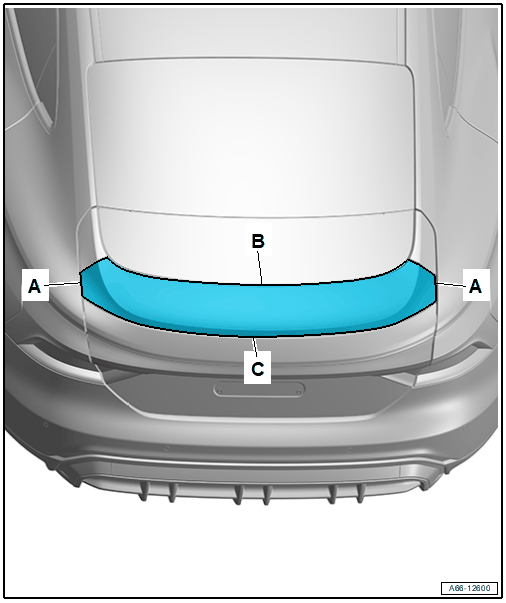

GWWA66-12600

Courtesy of AUDI OF AMERICA, LLC

A - Spoiler to Side Panel

Gap dimension = 4.1 mm

B - Spoiler to Glass Trim

Gap dimension = 4.0 mm

C - Spoiler to Rear Lid

Gap dimension = 3.0 mm
