Rear Spoiler Control Module J223, Removing And Installing: Removing

If the Rear Spoiler Control Module -J223- is replaced, perform the test plan for replacing the control module.

-- Perform the "Control module, replacing" function with the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

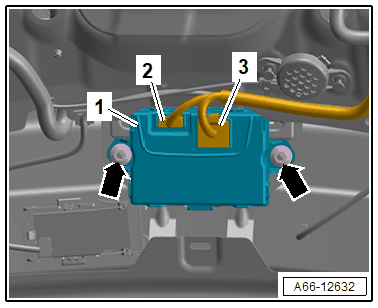

-- Disconnect the connectors -2- and -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows-.

-- Remove the control module -1-.
