Front Emblem, Removing And Installing: Removing

-- Remove the upper end panel. Refer to UPPER END PANEL, REMOVING AND INSTALLING .

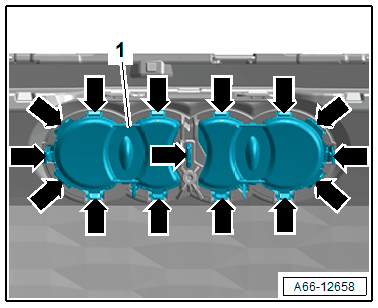

-- Release the retainers -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the emblem -1- from the radiator grille.

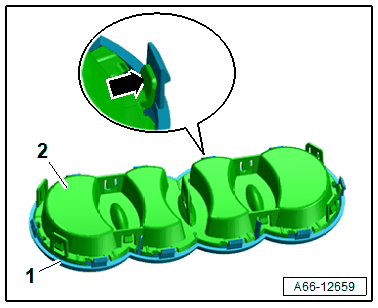

-- Lift the tabs -arrow- and remove the cover -2- from the emblem -1-.

Courtesy of AUDI OF AMERICA, LLC
