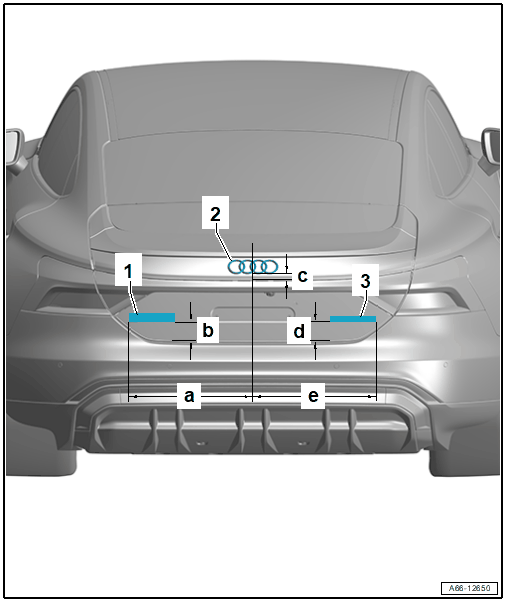

Dimensions - Rear Name Badges And Emblems

Courtesy of AUDI OF AMERICA, LLC

1. Left Name Badge
   • e-tron GT
   • Dimension -a- = 467 mm
   • Dimension -b- = 69 mm
   • RS
   • Dimension -a- = 438 mm
   • Dimension -b- = 60 mm
   • Refer to GENERAL INFORMATION - NAME BADGES AND EMBLEMS, REPLACING  .
2. Audi Emblem
   • Dimension -c- = 25 mm
   • Refer to GENERAL INFORMATION - NAME BADGES AND EMBLEMS, REPLACING  .
3. Right Name Badge
   • e-tron GT
   • Dimension -d- = 67 mm
   • Dimension -e- = 461 mm
   • Refer to GENERAL INFORMATION - NAME BADGES AND EMBLEMS, REPLACING  .
