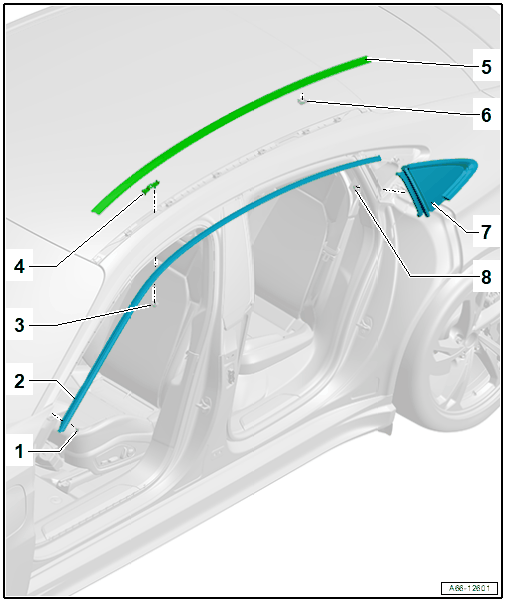

Overview - Trim Molding

Courtesy of AUDI OF AMERICA, LLC

Quick Release
- Quantity: 11
Roof Trim Molding
- Refer to ROOF TRIM MOLDING, REMOVING AND INSTALLING
Nut
- Quantity: 2
- 10 Nm
Roof Luggage Carrier Mount
- Installation position: tab points toward the inside
- Quantity: 2
Panorama Roof Trim Molding
- Refer to PANORAMA ROOF TRIM MOLDING, REMOVING AND INSTALLING
Clip
- Replace after removing
Side Window Trim Molding
- Cannot be replaced separately
- Refer to Rear Side Window, Removing and Installing .
Nut
- Quantity: 3
- 5.2 Nm
