Overview - Side Sill Trim Panel

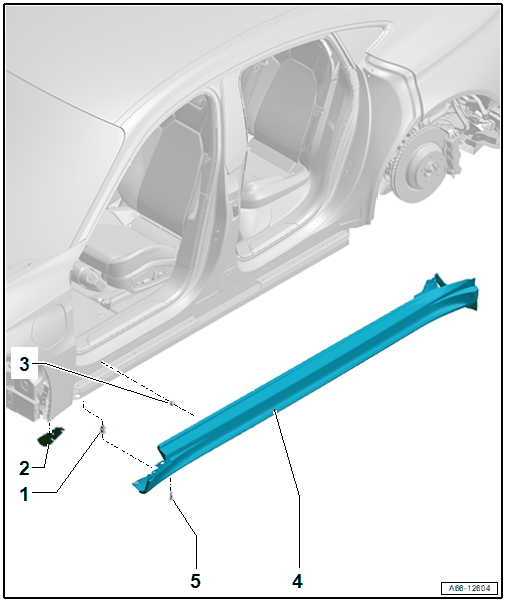

Fig 1: Exploded View Of Side Sill Trim Panel
GWWA66-12604Courtesy of AUDI OF AMERICA, LLC
  1. Mount
    • Quantity: 9
  2. Side Sill Trim Panel Bracket
  3. Bracket
    • Quantity: 10
    • Replace after removing
  4. Side Sill Trim Panel
  5. Plug
    • Quantity: 9
