B-Pillar Trim, Removing And Installing: Removing
-- Open the front and rear doors.

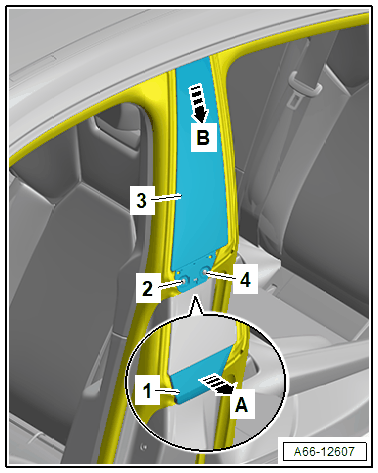

-- Unclip the cover -1- and remove it downward -arrow A-.
Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the bolts -2- and -4-.
-- Push the B-pillar trim -3- downward -arrow B-. While doing this, the upper tab will disengage from the mount.
-- Remove the B-pillar -3- trim.
