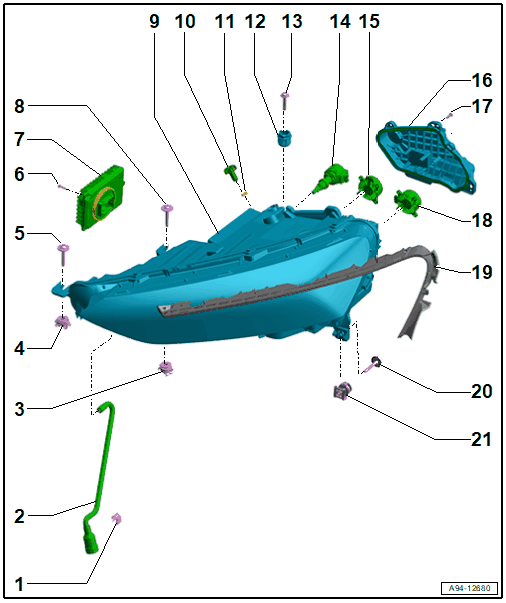

Overview - Matrix Led Headlamps (8IY)/ Laser Led Headlamps (8IZ)
- Bracket
- Headlamp Housing Bleeder Hose
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Bolt
- 6 Nm
- Bolt
- Quantity: 3
- 1.5 Nm
- Right LED Headlamp Power Output Module 1 -A27- /Left LED Headlamp Power Output Module 1 -A31-
- Bolt
- 6 Nm
- Left Front Headlamp -MX1- / Right Front Headlamp -MX2-
- Refer to Headlamp, Removing and Installing .
- Refer to HEADLAMPS, ADJUSTING, NORTH AMERICAN MARKET VERSION .
- Refer to Headlamp Housing Repair Kit, Installing .
- Height Adjustment Screw
- Replace after removing
- Seal
- Adjusting Nut
- For the headlamp height adjustment
- Bolt
- 6 Nm
- Left Headlamp Beam Adjustment Motor -V48- / Right Headlamp Beam Adjustment Motor -V49-
- Left Headlamp Fan 2 -V463- /Right Headlamp Fan 2 -V464-
- For LED Headlamp with Laser High Beam
- Refer to LEFT AND RIGHT HEADLAMP FAN 2 V463/V464, REMOVING AND INSTALLING
- Housing Cover
- Bolt
- Quantity: 4
- 1.5 Nm
- Left Headlamp Fan -V407- / Right Headlamp Fan -V408-
- Sealing Frame
- Refer to Headlamp, Removing and Installing .
- Bolt
- 6 Nm
- Adjuster
- For adjusting the headlamp housing to the bumper contour

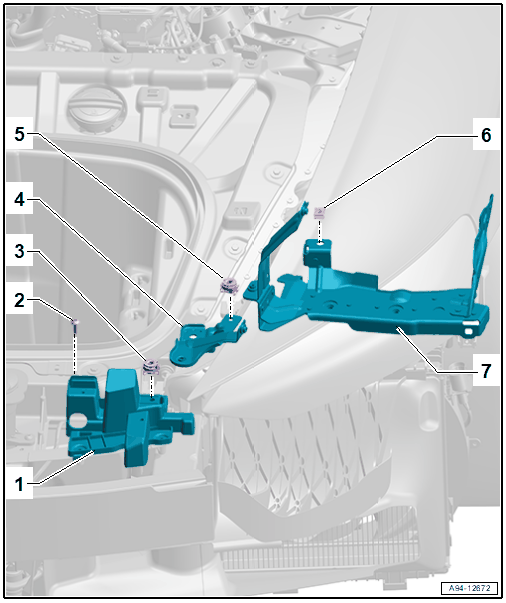

Overview - Headlamp Mount
1 - Headlamp Mount
- For the guide for the bumper cover
- Refer to Headlamp, Removing and Installing .
2 - Bolts
- Refer to Fig 3
3 - Adjuster
- For adjusting the headlamp housing to the bumper contour
4 - Front Fender Brace
- For mounting the headlamp
5 - Adjuster
- For adjusting the headlamp housing to the bumper contour
6 - Spring Nut
7 - Lower Fender Brace
- For mounting the headlamp

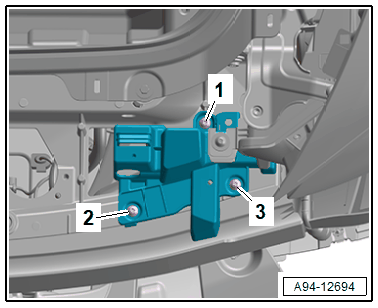

Headlamp Mount - Tightening Specification and Sequence
| Bolt tightening sequence | Tightening Specification |
|---|---|
| -1- through -3- | 4 Nm |
