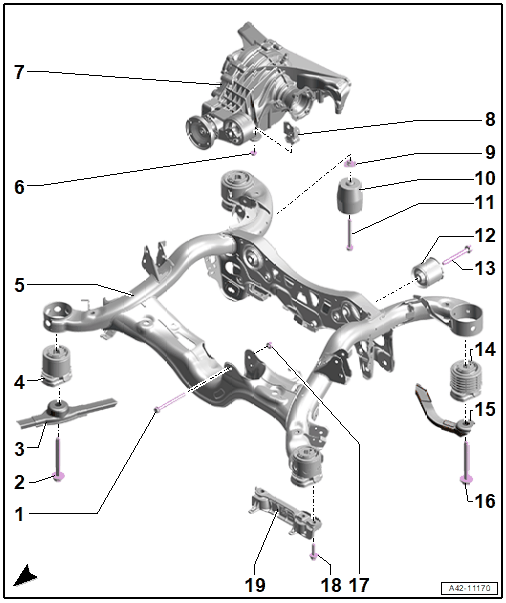

Overview - SUBFRAME
- Bolt
- Tightening specification. Refer to appropriate Final Drive article, Final Drive; Overview - Final Drive .
- Bolt
- Always replace after removing
- 130 Nm + 180°
- Diagonal Brace
- Equipped on some models
- Overview. Refer to OVERVIEW - UNDERBODY BRACING .
- Front Hydraulic Bonded Rubber Bushing
- For the subframe
- Removing and Installing. Refer to SUBFRAME FRONT HYDRAULIC BONDED RUBBER BUSHING, REPLACING .
- Installation position. Refer to Fig 2.
- Subframe
- Removing and Installing. Refer to SUBFRAME, REMOVING AND INSTALLING .
- In vehicles without rear axle steering, a steering adapter will be installed instead Refer to Fig 4.
- Nut
- Tightening specification. Refer to appropriate Final Drive article, Final Drive; Overview - Final Drive .
- Rear Final Drive
- Additional Bearing
- For the rear final drive
- Removing and installing. Refer to appropriate Final Drive article, Final Drive; Overview - Final Drive .
- Metal Nut
- For -Item : Balance Weight
- Balance Weight
- Equipped on some models
- Bolt
- For -Item : Balance Weight
- Always replace after removing
- 50 Nm + 180°
- Rear Bonded Rubber Bushing
- For the rear final drive
- Installation position. Refer to Fig 3.
- Bolt
- Tightening specification. Refer to appropriate Final Drive article, Final Drive; Overview - Final Drive .
- Rear hydraulic bonded rubber bushing
- For the subframe
- Removing and Installing. Refer to SUBFRAME REAR HYDRAULIC BONDED RUBBER BUSHING, REPLACING .
- Brace
- Equipped on some models
- Removing and Installing. Refer to OVERVIEW - UNDERBODY BRACING .
- Bolt
- Always replace after removing
- 130 Nm + 180°
- Nut
- Bolt
- Always replace after removing
- 70 Nm +90°
- Impact Guard
- Equipped on some models
Subframe Hydraulic Front Bonded Rubber Bushing Installation Position
- The groves -arrows- are perpendicular to the direction of travel.
Rear Bonded Rubber Bushings Installation Position for the Rear Final Drive.
- The grooves -arrows- on the bonded rubber bushings -1- are at a right angle.
Steering Adapter/Subframe Threaded Connection
Only on vehicles without rear axle steering.
CAUTION:
There is a risk of accident due to threaded connections that are not tightened correctly.
- Tighten threaded connections correctly before driving on public roads.
- Replace the bolts after removing them.
-- Bring the steering adapter -1- into the installation position and install the bolts by hand all the way.
-- Align the steering adapter with the Locking Pin: T40393 to the subframe and tighten the bolts : Bolt .
