Charge Air System, Checking For Leaks

Special tools and workshop equipment required

• Turbo System Tester Kit: V. A. G 1687
  Fig 1: Identifying Turbo System Tester Kit

  Courtesy of AUDI OF AMERICA, LLC
• Turbo System Tester Kit - Adapter 11 : V. A. G 1687/11  and Turbo System Tester Kit - Adapter : V. A. G 1687/14
  Fig 2: Identifying Turbo System Tester Kit

  Courtesy of AUDI OF AMERICA, LLC

Procedure

-- Pay attention to the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

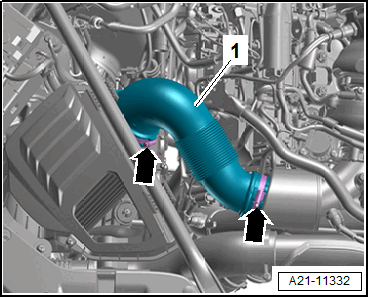

-- Loosen the hose clamps -arrows- and remove the air duct pipe -1-.

Courtesy of AUDI OF AMERICA, LLC

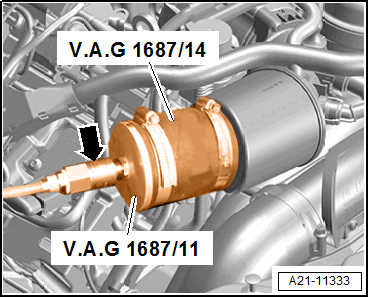

-- Connect the Turbo System Tester Kit - Adapter 11 : V. A. G 1687/11  with the Turbo System Tester Kit - Adapter : V. A. G 1687/14  to the turbocharger.

Courtesy of AUDI OF AMERICA, LLC

-- Connect the hose -arrow- from the Turbo System Tester Kit : V. A. G 1687  to the adapter.

All additional procedures are described under: CHARGE AIR SYSTEM, CHECKING FOR LEAKS .

Assembling

• Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Electronic Parts Information (ETKA).

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Tightening Specifications

• Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
