Camshaft Timing Chain, Removing From Camshafts, Cylinder Bank 1 (Right): Removing

If the Camshaft Housing Should also be Removed:

-- Remove the right lower air duct pipe on the turbocharger. Refer to LOWER AIR DUCT PIPES ON TURBOCHARGER, REMOVING AND INSTALLING .

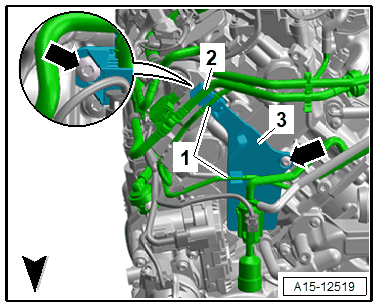

-- Free up the wires -1 and 2- on the bracket -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and move the bracket to the side.

All additional procedures are described. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
