Starter Generator Ribbed Belt, Removing And Installing

Removing

-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

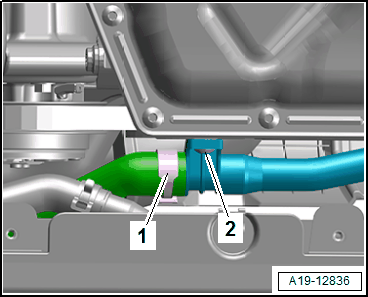

-- Remove the left and right bolt -2- and push the front coolant pipe upward.

GWWA19-12836Courtesy of AUDI OF AMERICA, LLC

All additional procedures are described. Refer to RIBBED BELT, REMOVING AND INSTALLING .

Tightening Specifications
