Center Console-Rear Upper Section - Only 4-Door

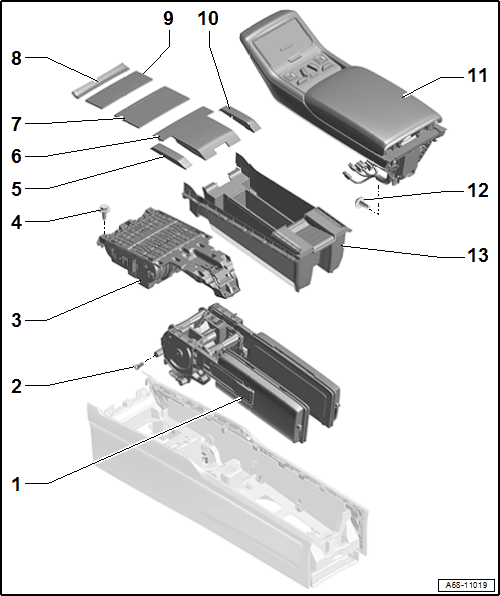

Fig 1: Exploded View Of Center Console-Rear Upper Section - Only 4-Door

Courtesy of AUDI OF AMERICA, LLC

1. Folding Tray Table
   • Equipped on some models
   • Allocation. Refer to the Electronic Parts Information (ETKA).
   • Removing and Installing. Refer to FOLDING TRAY TABLE IN REAR CENTER CONSOLE, REMOVING AND INSTALLING .
2. Bolt
   • Quantity: 9
   • 3 Nm
3. Rear Cup Holder
   • Removing and Installing. Refer to REAR CENTER CONSOLE CUPHOLDER, REMOVING AND INSTALLING .
4. Bolt
   • Quantity: 7
   • 3 Nm
5. Gap Cover
   • Removing and Installing. Refer to REAR CENTER CONSOLE GAP COVER, REMOVING AND INSTALLING .
   • Engage in the folding tray table and press on it until it engages audibly
6. Center console cover
   • Removing and Installing. Refer to REAR CENTER CONSOLE COVER, REMOVING AND INSTALLING .
   • Replace damaged or deformed clips
   • Press on until it engages audibly
7. Cupholder Rear Trim
   • Allocation. Refer to the Electronic Parts Information (ETKA).
   • Removing and Installing. Refer to REAR CENTER CONSOLE CUPHOLDER, REMOVING AND INSTALLING .
   • Engage in the cupholder and press on it until it engages audibly
8. Trim
   • For the rear center console
   • Removing and Installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
   • Replace damaged or deformed clips
   • Clip in the cupholder and press on it until it engages audibly
9. Cupholder Front Trim
   • Allocation. Refer to the Electronic Parts Information (ETKA).
   • Removing and Installing. Refer to REAR CENTER CONSOLE CUPHOLDER, REMOVING AND INSTALLING .
   • Engage in the cupholder and press on it until it engages audibly
10. Gap Cover
    • Removing and Installing. Refer to REAR CENTER CONSOLE GAP COVER, REMOVING AND INSTALLING .
    • Engage in the folding tray table and press on it until it engages audibly
11. Rear Center Armrest
    • Removing and Installing. Refer to REAR CENTER ARMREST, REMOVING AND INSTALLING .
12. Bolt
    • Quantity: 3
    • Tightening specification -item  : Bolt.
13. Rear Storage Compartment
    • Equipped on some models
    • Allocation. Refer to the Electronic Parts Information (ETKA).
    • Removing and Installing. Refer to REAR CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
