Center Console- Front Upper Section

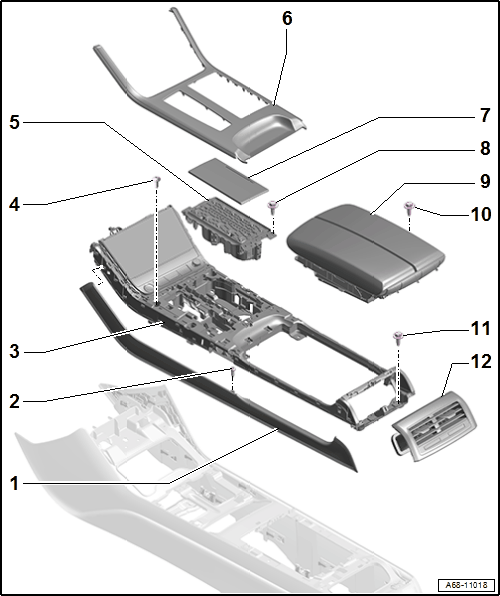

Fig 1: Exploded View Of Center Console- Front Upper Section

Courtesy of AUDI OF AMERICA, LLC

Front Center Console Decorative Trim
- Quantity: 2
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Removing and Installing. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Press on until it engages audibly
Bolt
- 0.7 Nm
Center Console Insert
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Press on until it engages audibly
Bolt
- Quantity: 4
- 8 Nm
Front Cup Holder
- Removing and Installing. Refer to FRONT CENTER CONSOLE CUPHOLDER, REMOVING AND INSTALLING .
Center Console Insert Cover
- Removing and Installing. Refer to FRONT CENTER CONSOLE INSERT COVER, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Press on until it engages audibly
Cupholder Trim
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Removing and Installing. Refer to FRONT CENTER CONSOLE CUPHOLDER, REMOVING AND INSTALLING .
- Engage in the cupholder and press on it until it engages audibly
Bolt
- Quantity: 3
- 3 Nm
Front Center Armrest
- Removing and Installing. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- Tightening specification -item : Bolt.
Bolt
- Quantity: 2
- 3 Nm
Rear Vent
- Removing and Installing. Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Insert and press in all the way into the installation opening
