Alloy Disc Wheel: Notes
NOTE:

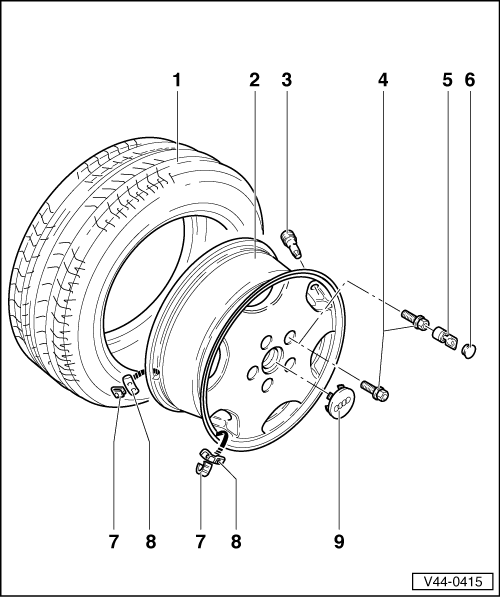

Alloy wheels are available in different styles. The "aerostyle" wheel is shown.
- Tire
- To ensure driving safety, replace tires on front or rear axle in pairs, not individually
- The tires with the deeper tread depth should always be on the front wheels
- Use only tires from the same manufacturer, of the same type of construction and tread type
- Tire sizes WHEELS AND TIRES
- Alloy disc wheel
- 6J x 15, ET 45 mm
- 7J x 15, ET 45 mm
- Valve
- Replace when replacing tire or disc wheel
- Wheel bolt
- 110 Nm (81 ft lb)
- -M14- x 1.5 x 27.5 mm
- Lock cylinder
- Install on wheel bolt and lock
- Cap
- Install on lock cylinder
- Holding spring for balance weights
- Balance weights
- Maximum 60 grams (2 oz) per rim permissible
- Cover
