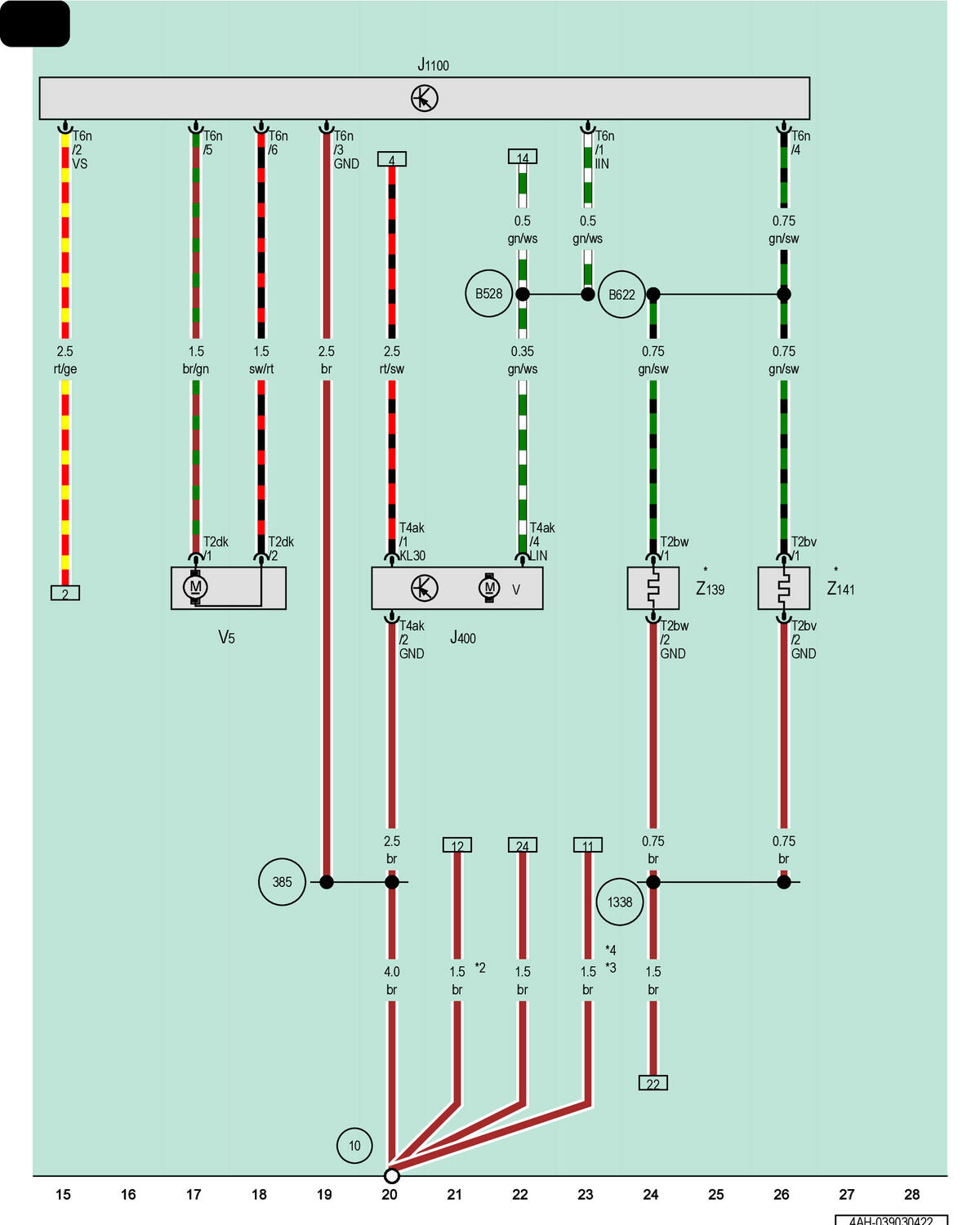

Wiper Motor Control Module, Windshield Washer Pump Control Module, Windshield Washer Pump, Thermal Resistor 1 In Driver Side Windshield Wiper Arm, Thermal Resistor 1 In Front Passenger Side Windshield Wiper Arm

Courtesy of AUDI OF AMERICA, LLC

J400

Wiper Motor Control Module

J1100

Windshield Washer Pump Control Module

T2bv

2-Pin Connector, Black

T2bw

2-Pin Connector, Black

T2dk

2-Pin Connector, Black

T4ak

4-Pin Connector, Black

T6n

6-Pin Connector, Black

V

Windshield Wiper Motor

V5

Windshield Washer Pump

Z139

Thermal Resistor 1 in Driver Side Windshield Wiper Arm

Z141

Thermal Resistor 1 in Front Passenger Side Windshield Wiper Arm

10

Ground Connection in Plenum Chamber

385

Ground Connection 20 (in Main Wiring Harness)

1338

Ground Connection 40 (in Main Wiring Harness)

B528

LIN Bus Connection 1 (in Main Wiring Harness)

B622

Windshield Wiper Connection (in Main Wiring Harness)

*

Pre-Wired Component

*2

Omitted as a Running Change

*3

Running Change

*4

For Vehicles with a Headlamp Washer System
