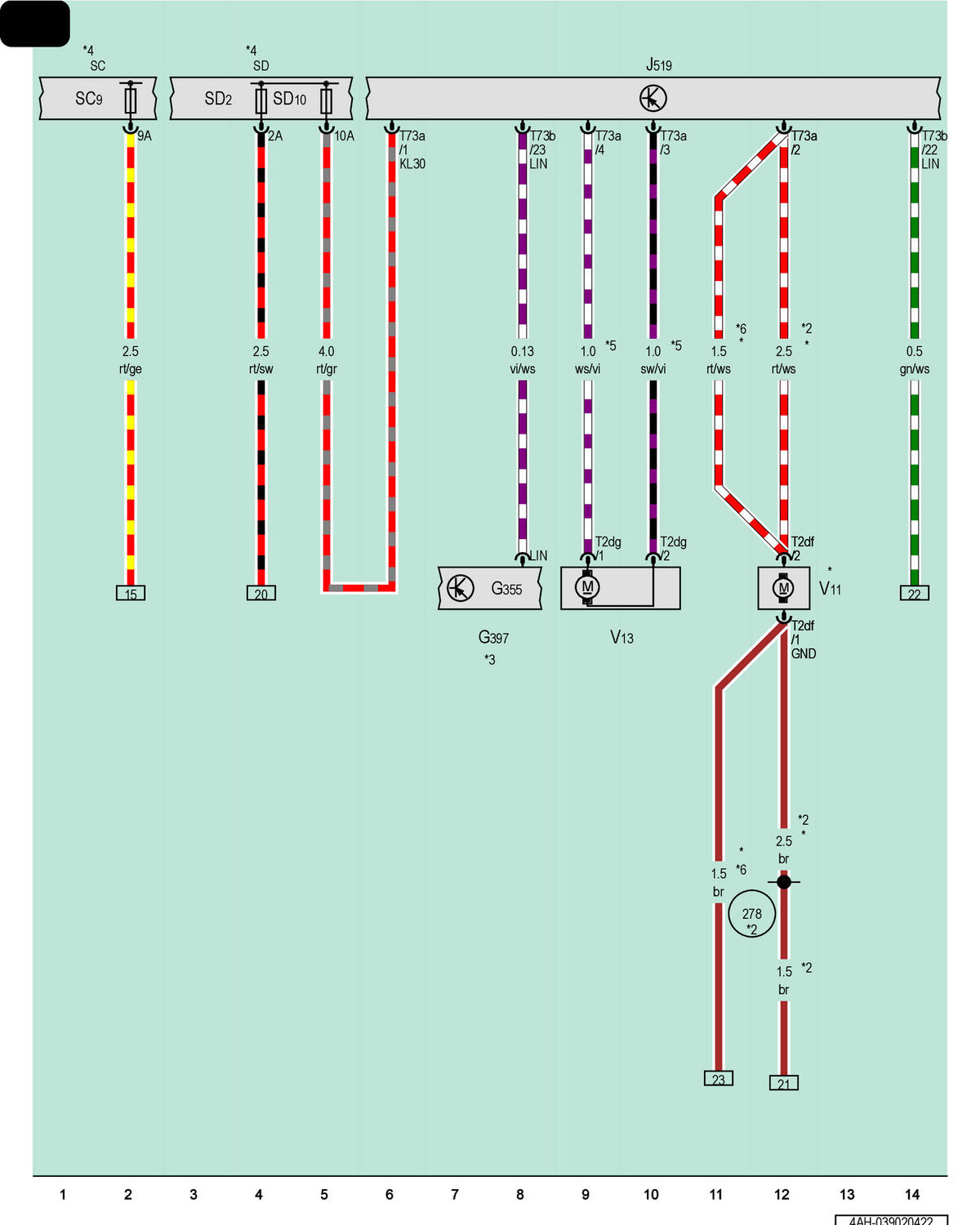

Rain/Light Recognition Sensor, Vehicle Electrical System Control Module, Headlamp Washer System Pump

Courtesy of AUDI OF AMERICA, LLC

G355

Humidity Sensor

G397

Rain/Light Recognition Sensor

J519

Vehicle Electrical System Control Module

SC

Fuse Panel C

SD

Fuse Panel D

SD2

Fuse 2 (On Fuse Panel D)

SC9

Fuse 9 (On Fuse Panel C)

SD10

Fuse 10 (On Fuse Panel D)

T2df

2-Pin Connector, Black

T2dg

2-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

V11

Headlamp Washer System Pump

V13

Rear Window Washer Pump

278

Ground Connection 4 (in Interior Wiring Harness)

*

For Vehicles with a Headlamp Washer System

*2

Omitted as a Running Change

*3

Refer to the Applicable Interior Rearview Mirror Wiring Diagram

*4

Refer to Applicable Wiring Diagram for Fuse Positions

*5

Depending on Equipment

*6

Running Change
