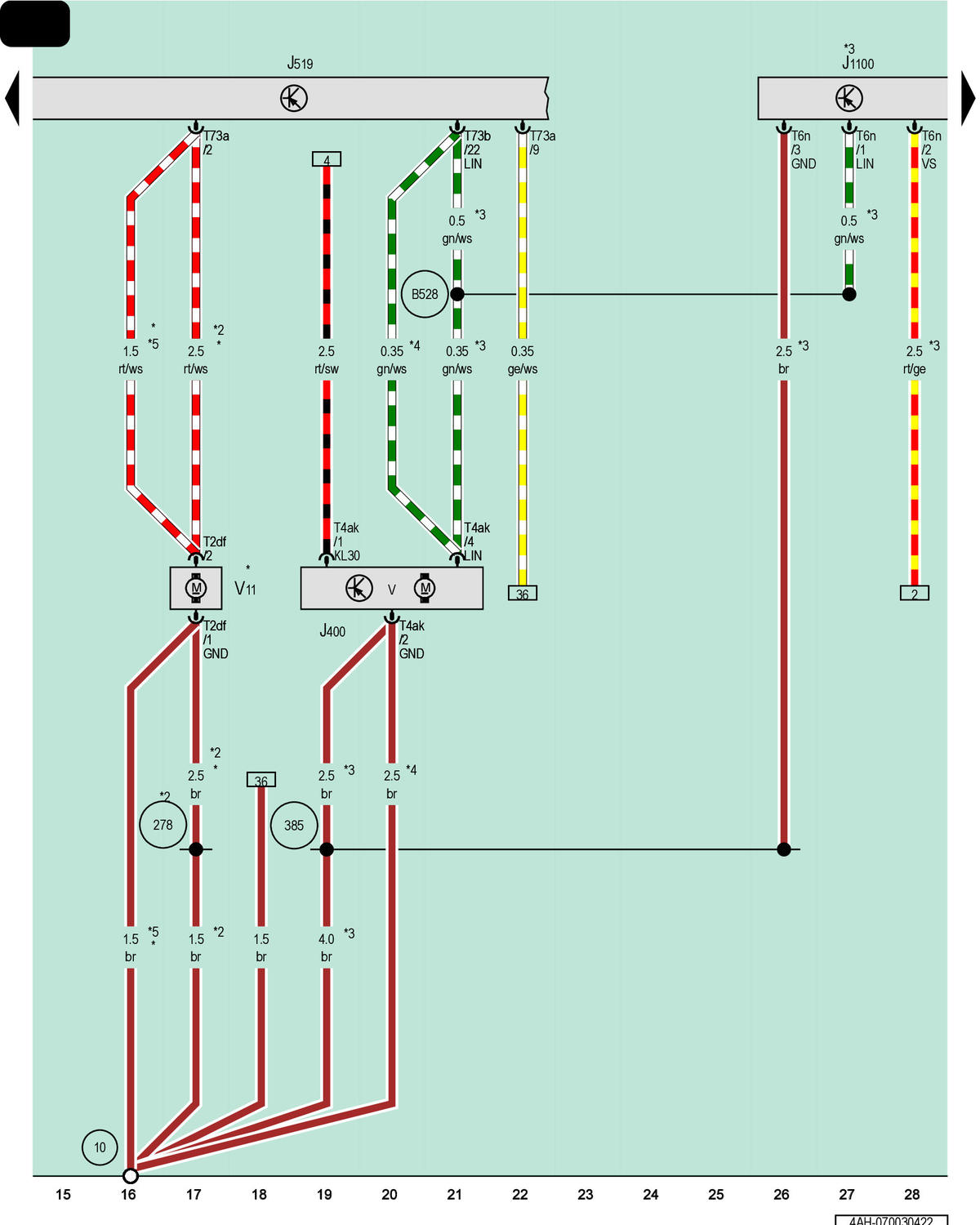

Wiper Motor Control Module, Vehicle Electrical System Control Module, Windshield Washer Pump Control Module, Headlamp Washer System Pump

Courtesy of AUDI OF AMERICA, LLC

J400

Wiper Motor Control Module

J519

Vehicle Electrical System Control Module

J1100

Windshield Washer Pump Control Module

T2df

2-Pin Connector, Black

T4ak

4-Pin Connector, Black

T6n

6-Pin Connector, Black

T73a

73-Pin Connector, Black, Naturally Cloudy

T73b

73-Pin Connector, Black, Black

V

Windshield Wiper Motor

V11

Headlamp Washer System Pump

10

Ground Connection in Plenum Chamber

278

Ground Connection 4 (in Interior Wiring Harness)

385

Ground Connection 20 (in Main Wiring Harness)

B528

LIN Bus Connection 1 (in Main Wiring Harness)

*

For Vehicles with a Headlamp Washer System

*2

Omitted as a Running Change

*3

For Vehicles with Adaptive Cruise Control (ACC)

*4

For Vehicles with Cruise Control System

*5

Running Change
