Windshield Washer Pump Control Module, Windshield Washer Pump, Left Washer Nozzle Heater, Right Washer Nozzle Heater

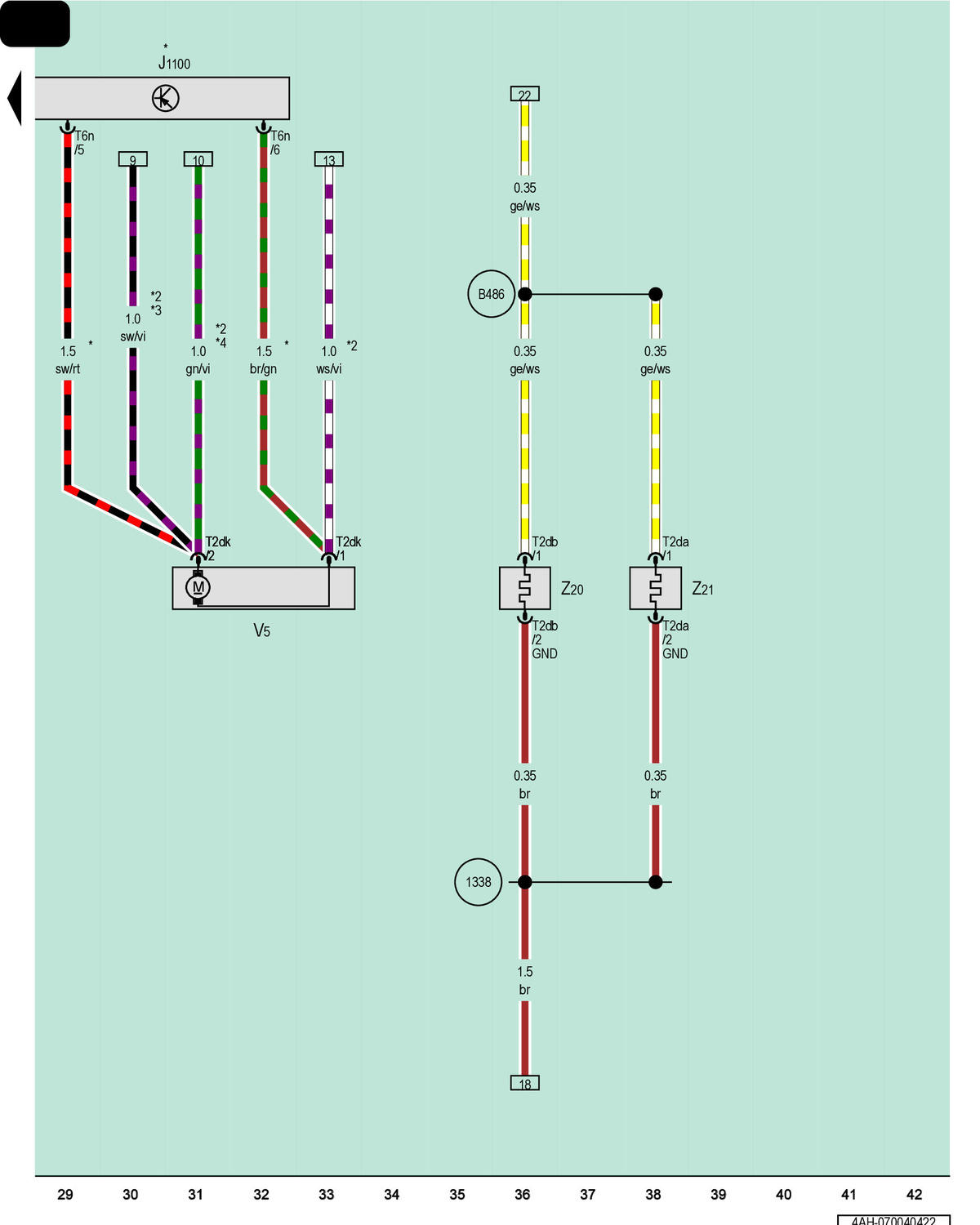

GWW4AH-070040422Courtesy of AUDI OF AMERICA, LLC

J1100

Windshield Washer Pump Control Module

T2da

2-Pin Connector, Black

T2db

2-Pin Connector, Black

T2dk

2-Pin Connector, Black

T6n

6-Pin Connector, Black

V5

Windshield Washer Pump

Z20

Left Washer Nozzle Heater

Z21

Right Washer Nozzle Heater

1338

Ground Connection 40 (in Main Wiring Harness)

B486

Connection 22 (in Main Wiring Harness)

*

For Vehicles with Adaptive Cruise Control (ACC)

*2

For Vehicles with Cruise Control System

*3

Omitted as a Running Change

*4

Running Change
