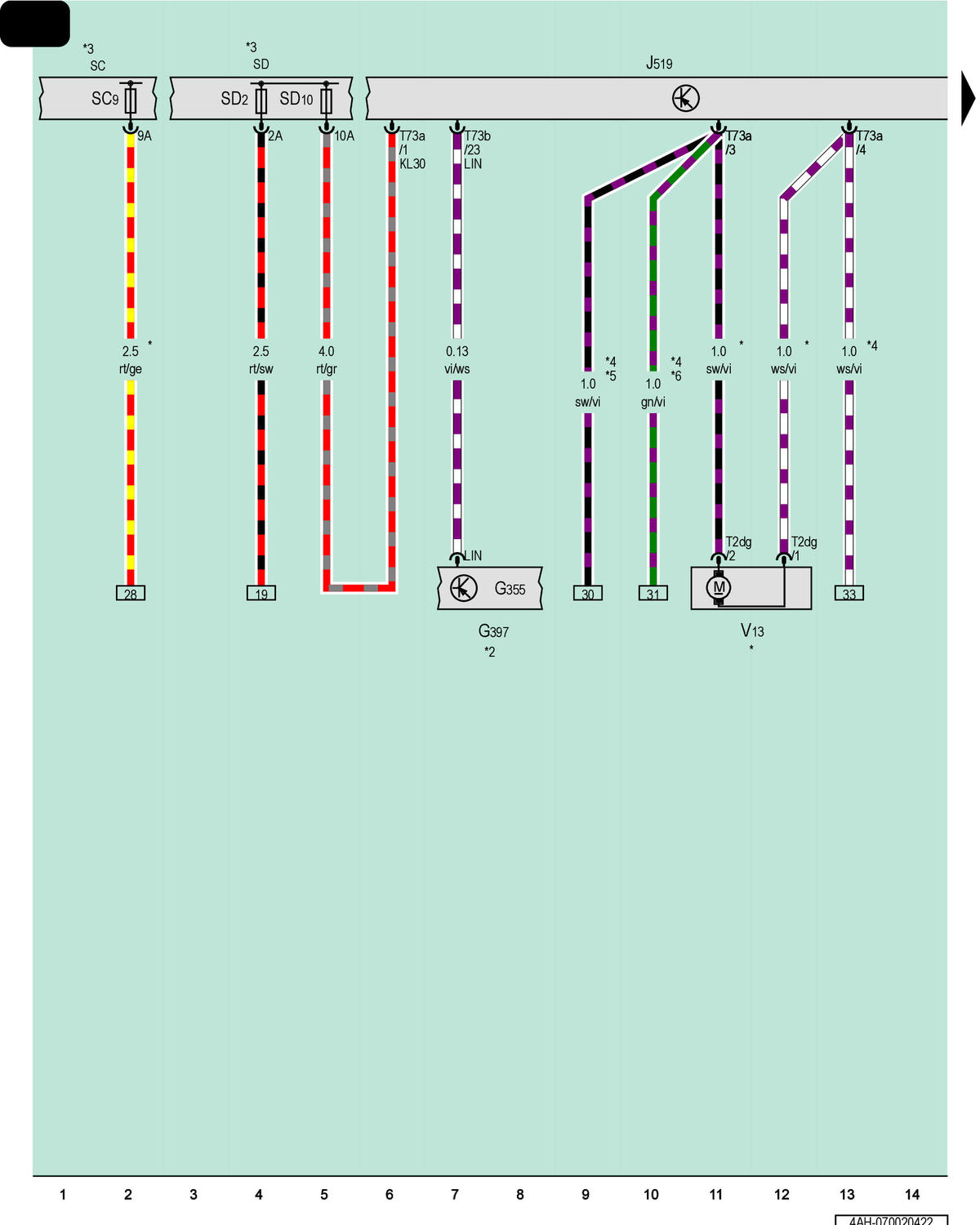

Rain/Light Recognition Sensor, Vehicle Electrical System Control Module, Rear Window Washer Pump

Courtesy of AUDI OF AMERICA, LLC

G355

Humidity Sensor

G397

Rain/Light Recognition Sensor

J519

Vehicle Electrical System Control Module

SC

Fuse Panel C

SC9

Fuse 9 (On Fuse Panel C)

SD

Fuse Panel D

SD2

Fuse 2 (On Fuse Panel D)

SD10

Fuse 10 (On Fuse Panel D)

T2dg

2-Pin Connector, Black

T73a

73-Pin Connector, Black, Naturally Cloudy

T73b

73-Pin Connector, Black, Black

V13

Rear Window Washer Pump

*

For Vehicles with Adaptive Cruise Control (ACC)

*2

Refer to the Applicable Interior Rearview Mirror Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Fuse Positions

*4

For Vehicles with Cruise Control System

*5

Omitted as a Running Change

*6

Running Change
