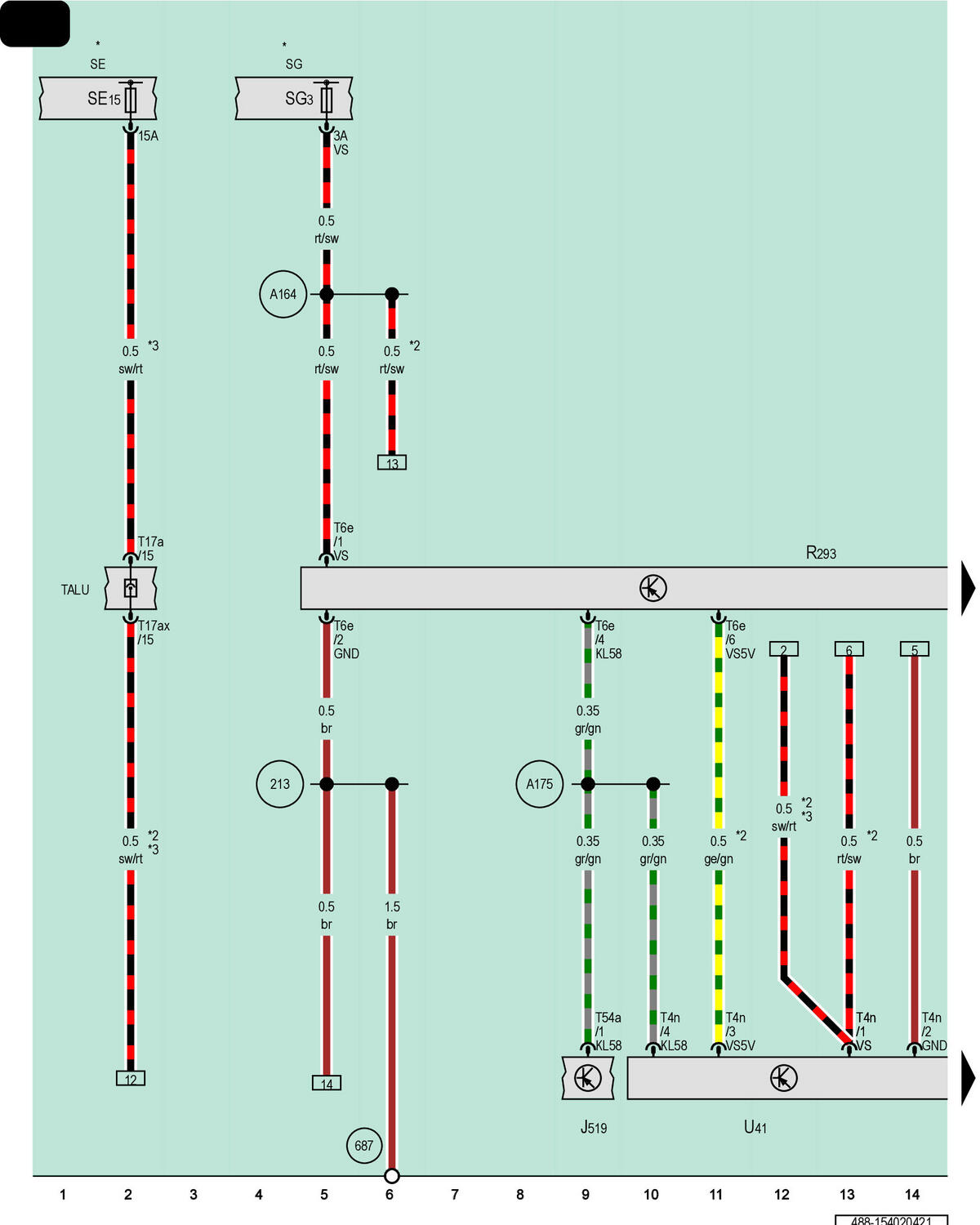

Vehicle Electrical System Control Module, USB Distributor, USB Connection 1

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

R293

USB Distributor

SE

Fuse Panel E

SG3

Fuse 3 on Fuse Panel G

SE15

Fuse 15 on Fuse Panel E

SG

Fuse Panel G

T4n

4-Pin Connector, Red

T6e

6-Pin Connector, Black

T17a

17-Pin Connector, White

T17ax

17-Pin Connector, White

T54a

54-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

U41

USB Connection 1

213

Ground Connection (in Instrument Panel Wiring Harness)

687

Ground Connection 1 on Center Tunnel

A164

Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)

A175

Connection 58s (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Depending on Equipment

*3

From June 2021
