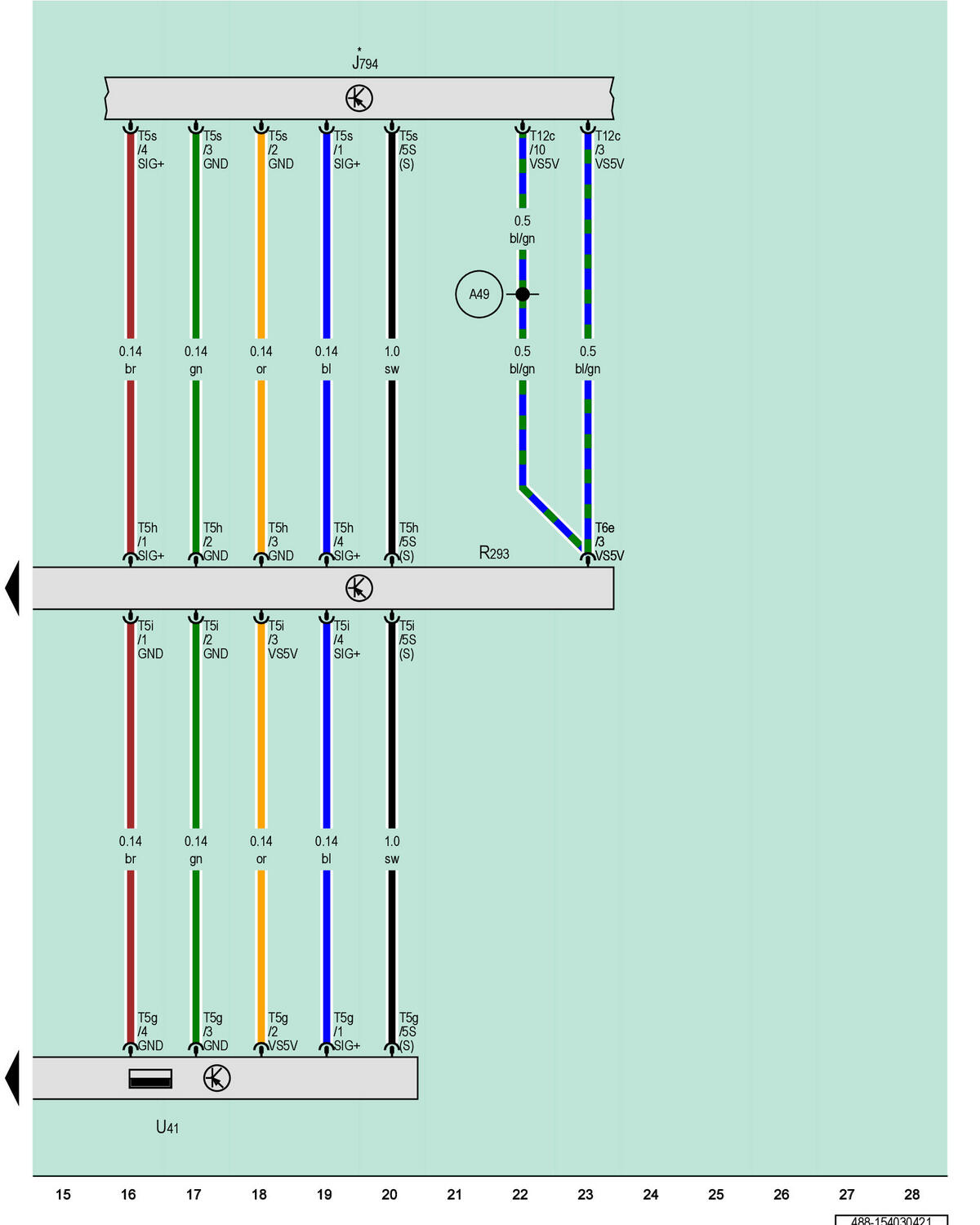

Information Electronics Control Module 1, USB Distributor, USB Connection 1

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R293

USB Distributor

T5g

5-Pin Connector, Blue

T5h

5-Pin Connector, Green

T5i

5-Pin Connector, Brown

T5s

5-Pin Connector, Brown

T6e

6-Pin Connector, Black

T12c

12-Pin Connector, Green

U41

USB Connection 1

A49

Connection 1 (in Instrument Panel Wiring Harness)

*

Refer to Applicable MMI (Information Electronics) Wiring Diagram
