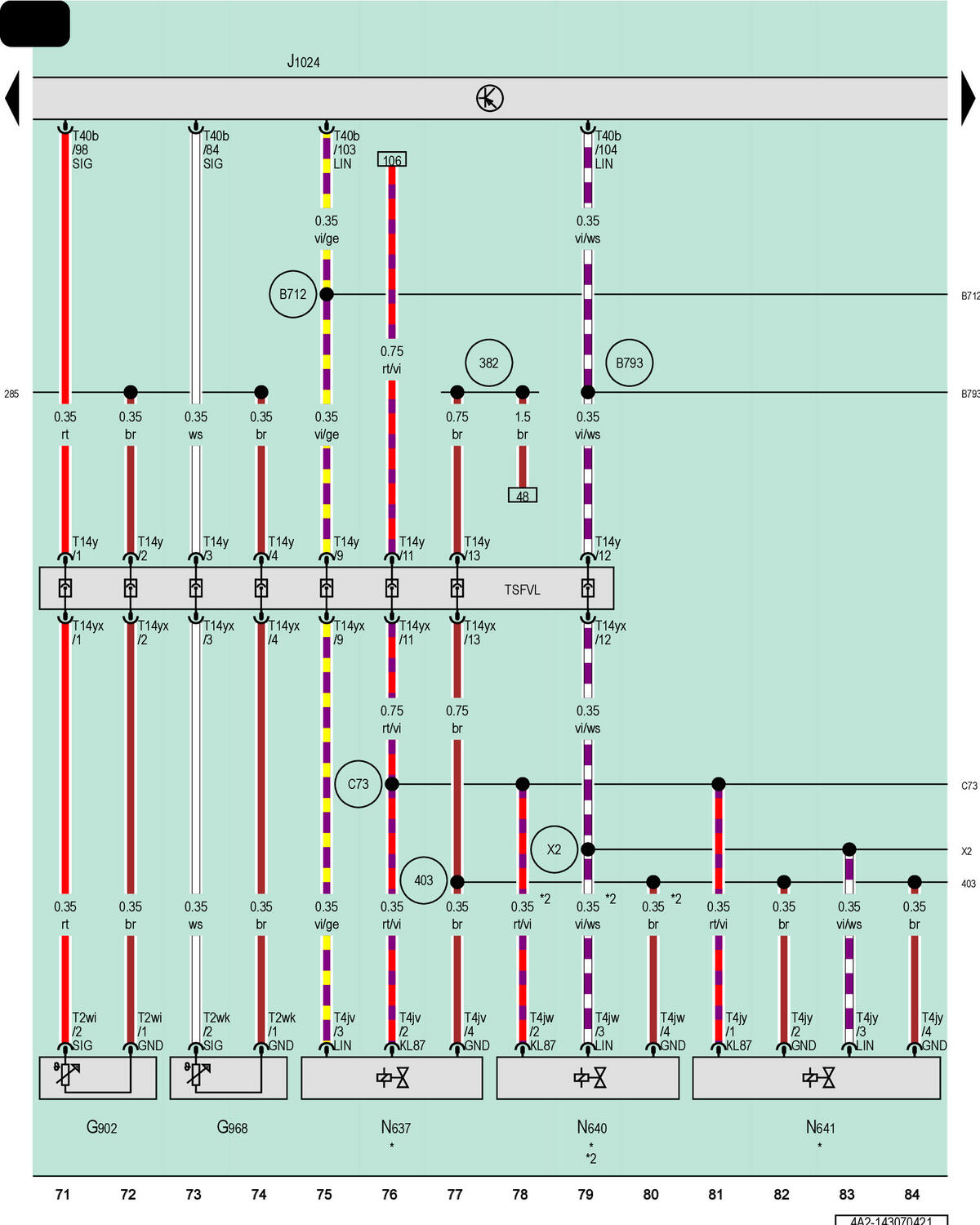

Thermal Management Coolant Temperature Sensor 1, Thermal Management Coolant Temperature Sensor 8, Thermal Management Control Module, Refrigerant Expansion Valve 2, Refrigerant Shut-Off Valve 2, Refrigerant Shut-Off Valve 3
G902
Thermal Management Coolant Temperature Sensor 1
G968
Thermal Management Coolant Temperature Sensor 8
J1024
Thermal Management Control Module
N637
Refrigerant Expansion Valve 2
N640
Refrigerant Shut-Off Valve 2
N641
Refrigerant Shut-Off Valve 3
T2wi
2-Pin Connector, Black
T2wk
2-Pin Connector, Black
T4jv
4-Pin Connector, Black
T4jw
4-Pin Connector, Black
T4jy
4-Pin Connector, Black
T14y
14-Pin Connector, Black
T14yx
14-Pin Connector, Black
T40b
40-Pin Connector, Black
TSFVL
Coupling Point on Left Front Bumper
285
Ground Connection 7 (in Interior Wiring Harness)
382
Ground Connection 17 (in Main Wiring Harness)
403
Ground Connection (in Front End Wiring Harness)
B712
LIN Bus Connection 7 (in Main Wiring Harness)
B793
Sensor Connection 2 (in Main Wiring Harness)
C73
Connection (in Front End Wiring Harness)
X2
LIN Bus Connection 1 (in Hybrid System Wiring Harness)
*
Pre-Wired Component
*2
Through February 2021
