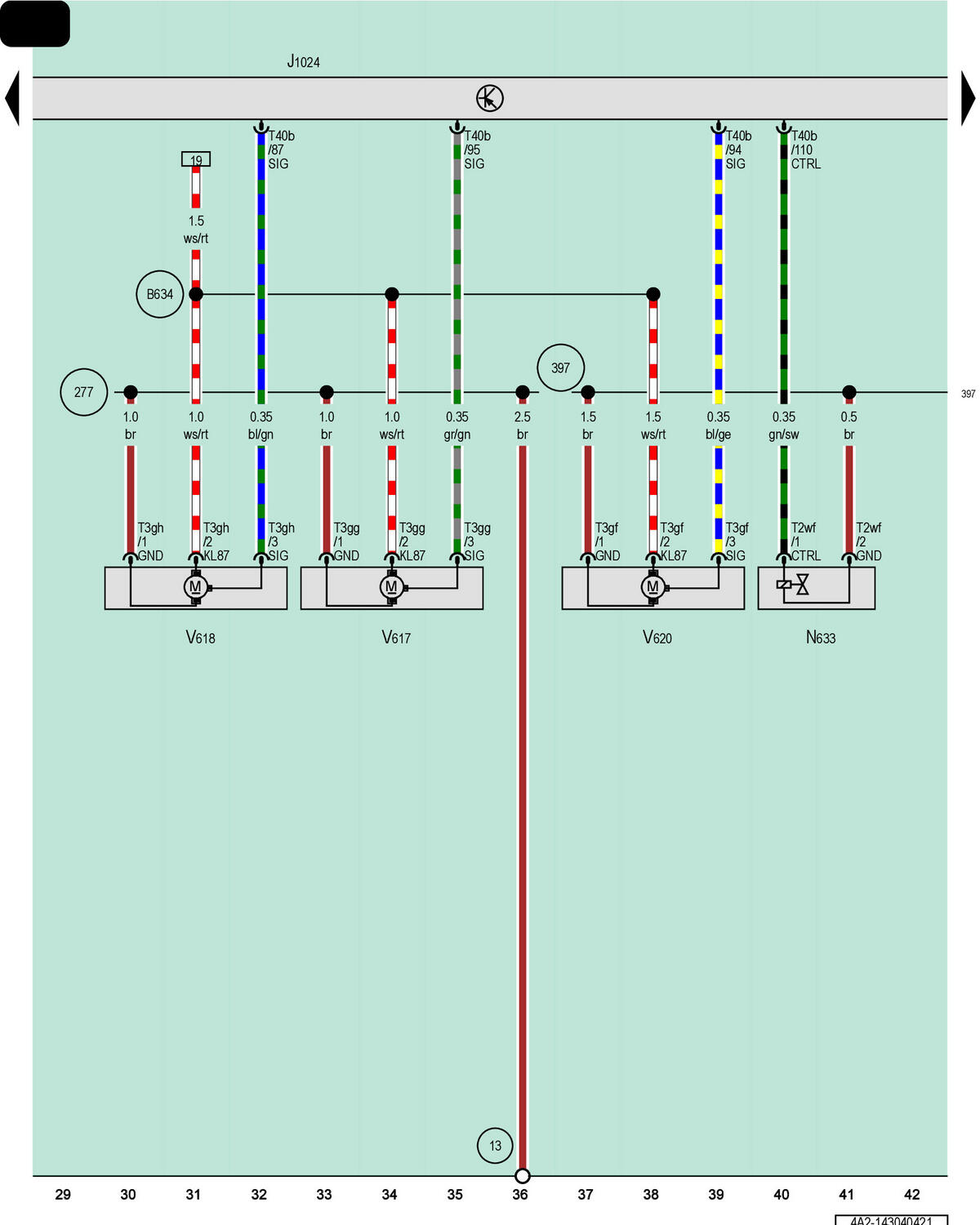

Thermal Management Control Module, Thermal Management Coolant Pump, Thermal Management Coolant Pump 2, Thermal Management Coolant Pump 4

Courtesy of AUDI OF AMERICA, LLC

J1024

Thermal Management Control Module

N633

Coolant Change-Over Valve 2

T2wf

2-Pin Connector, Black

T3gf

3-Pin Connector, Black

T3gg

3-Pin Connector, Black

T3gh

3-Pin Connector, Black

T40b

40-Pin Connector, Black

V617

Thermal Management Coolant Pump

V618

Thermal Management Coolant Pump 2

V620

Thermal Management Coolant Pump 4

13

Ground Connection in Engine/Motor Compartment, Right

277

Ground Connection 3 (in Interior Wiring Harness)

397

Ground Connection 32 (in Main Wiring Harness)

B634

Positive Connection 2 (87) (in Main Wiring Harness)
