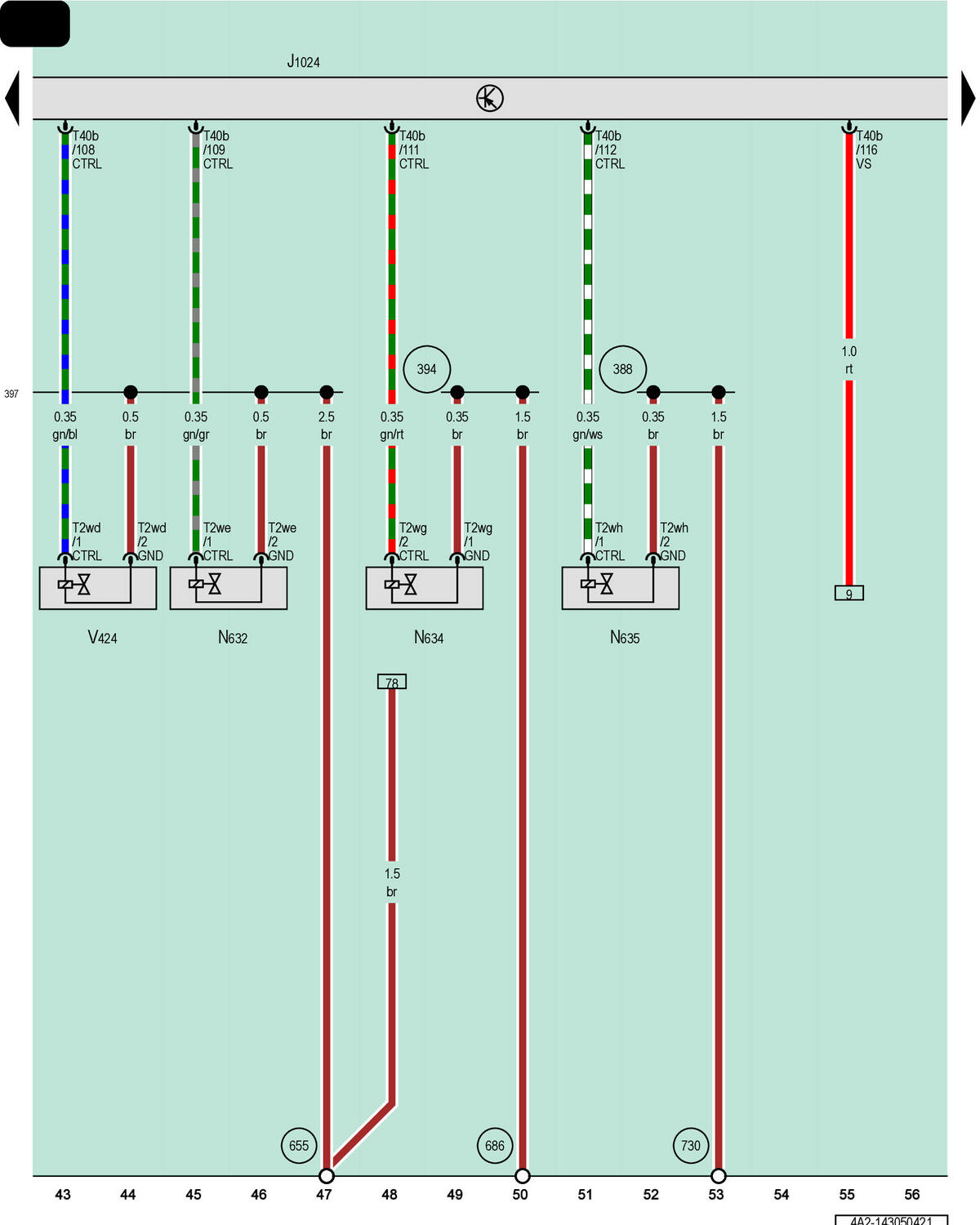

Thermal Management Control Module, Coolant Change-Over Valve 1, Coolant Change-Over Valve 3, Coolant Change-Over Valve 4, Refrigerant Shut-Off Valve
J1024
Thermal Management Control Module
N632
Coolant Change-Over Valve 1
N634
Coolant Change-Over Valve 3
N635
Coolant Change-Over Valve 4
T2wd
2-Pin Connector, Black
T2we
2-Pin Connector, Black
T2wg
2-Pin Connector, Black
T2wh
2-Pin Connector, Black
T40b
40-Pin Connector, Black
V424
Refrigerant Shut-Off Valve
388
Ground Connection 23 (in Main Wiring Harness)
394
Ground Connection 29 (in Main Wiring Harness)
397
Ground Connection 32 (in Main Wiring Harness)
655
Ground Connection on Left Headlamp
686
Ground Connection 2 on Right Front Longitudinal Member
730
Ground Connection 1 on Right Rear Wheel Housing
