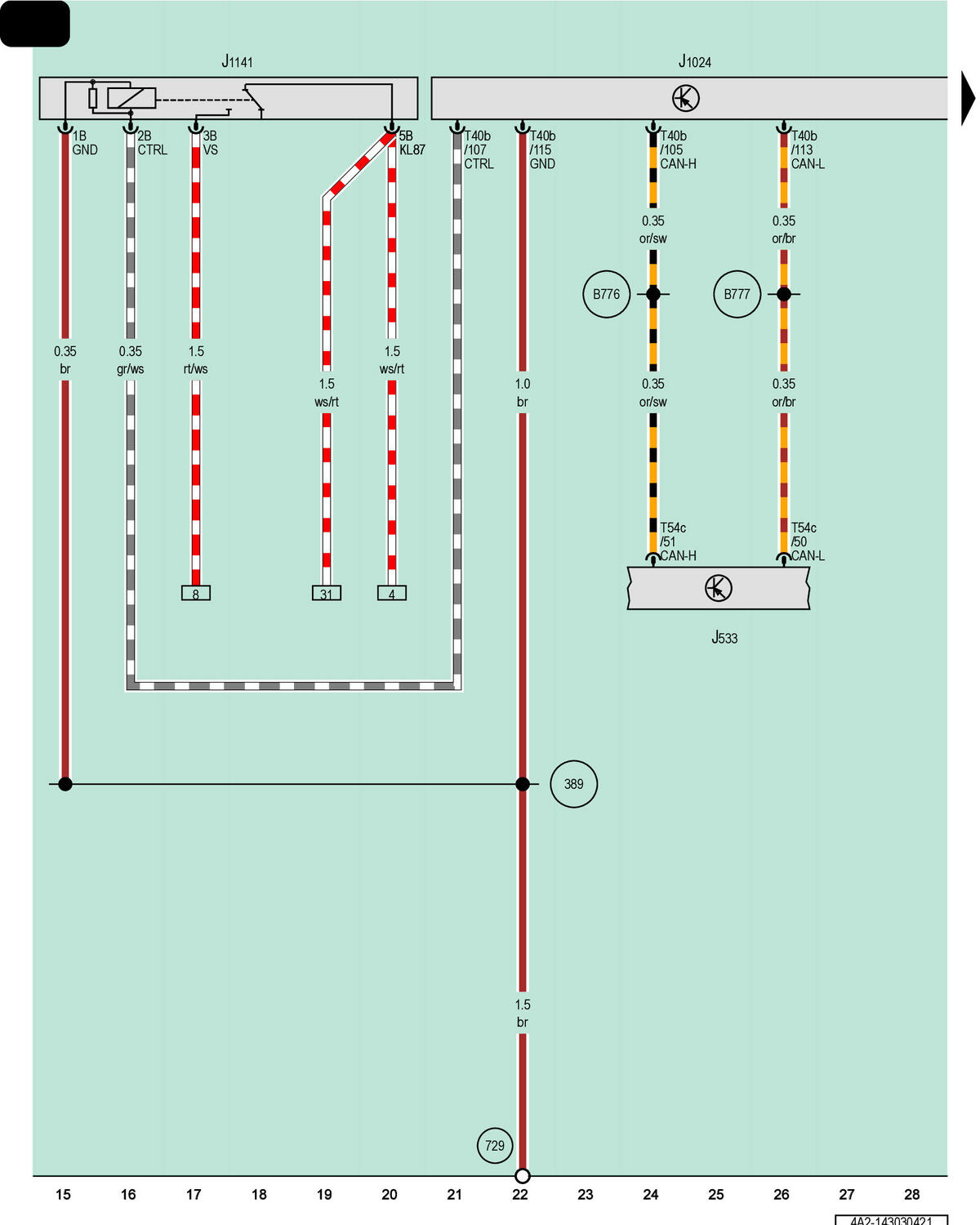

Data Bus On Board Diagnostic Interface, Thermal Management Control Module, Thermal Management Coolant Pump Relay
J533
Data Bus on Board Diagnostic Interface
J1024
Thermal Management Control Module
J1141
Thermal Management Coolant Pump Relay
T40b
40-Pin Connector, Black
T54c
54-Pin Connector, Black
389
Ground Connection 24 (in Main Wiring Harness)
729
Ground Connection on Left Rear Wheel Housing
B776
Hybrid CAN Bus High Connection 1 (in Main Wiring Harness)
B777
Hybrid CAN Bus Low Connection 1 (in Main Wiring Harness)
