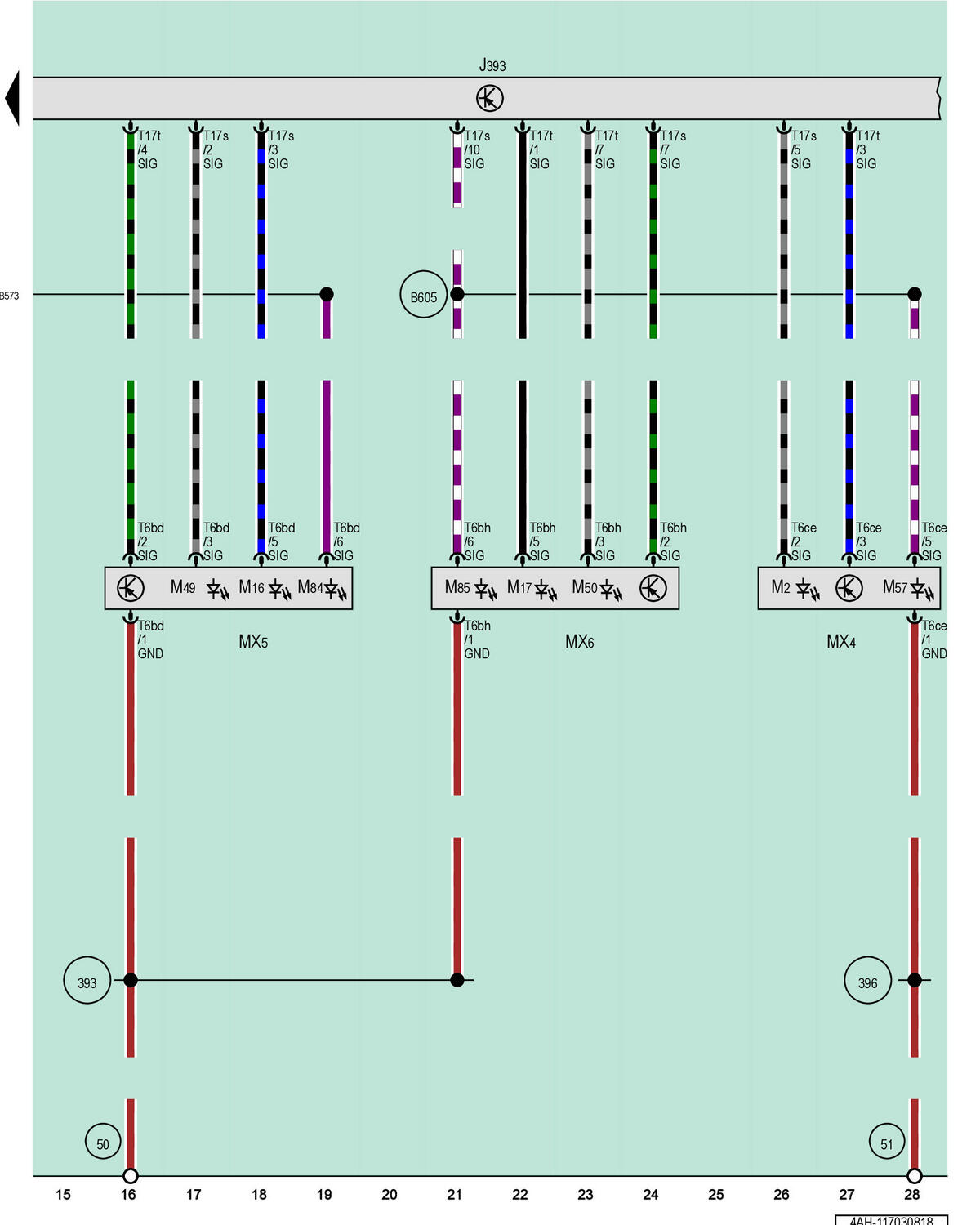

Comfort System Central Control Module, Right Tail Lamp, Left Tail Lamp 2, Right Tail Lamp 2
J393
Comfort System Central Control Module
M2
Right Tail Lamp Bulb
MX4
Right Tail Lamp
MX5
Left Tail Lamp 2
MX6
Right Tail Lamp 2
M16
Left Back-Up Lamp Bulb
M17
Right Back-Up Lamp Bulb
M49
Left Tail Lamp Bulb 2
M50
Right Tail Lamp Bulb 2
M57
Right Brake Lamp/Turn Signal Bulb
M84
Left Brake Lamp/Turn Signal Bulb 2
M85
Right Brake Lamp/Turn Signal Bulb 2
T6bd
6-Pin Connector, Black
T6bh
6-Pin Connector, Black
T6ce
6-Pin Connector, Black
T17s
17-Pin Connector, Black
T17t
17-Pin Connector, Brown
50
Ground Connection in Luggage Compartment, Left
51
Ground Connection in Luggage Compartment, Right
393
Ground Connection 28 (in Main Wiring Harness)
396
Ground Connection 31 (in Main Wiring Harness)
B573
Connection 40 (in Main Wiring Harness)
B605
Connection 1 (in Interior Wiring Harness)
