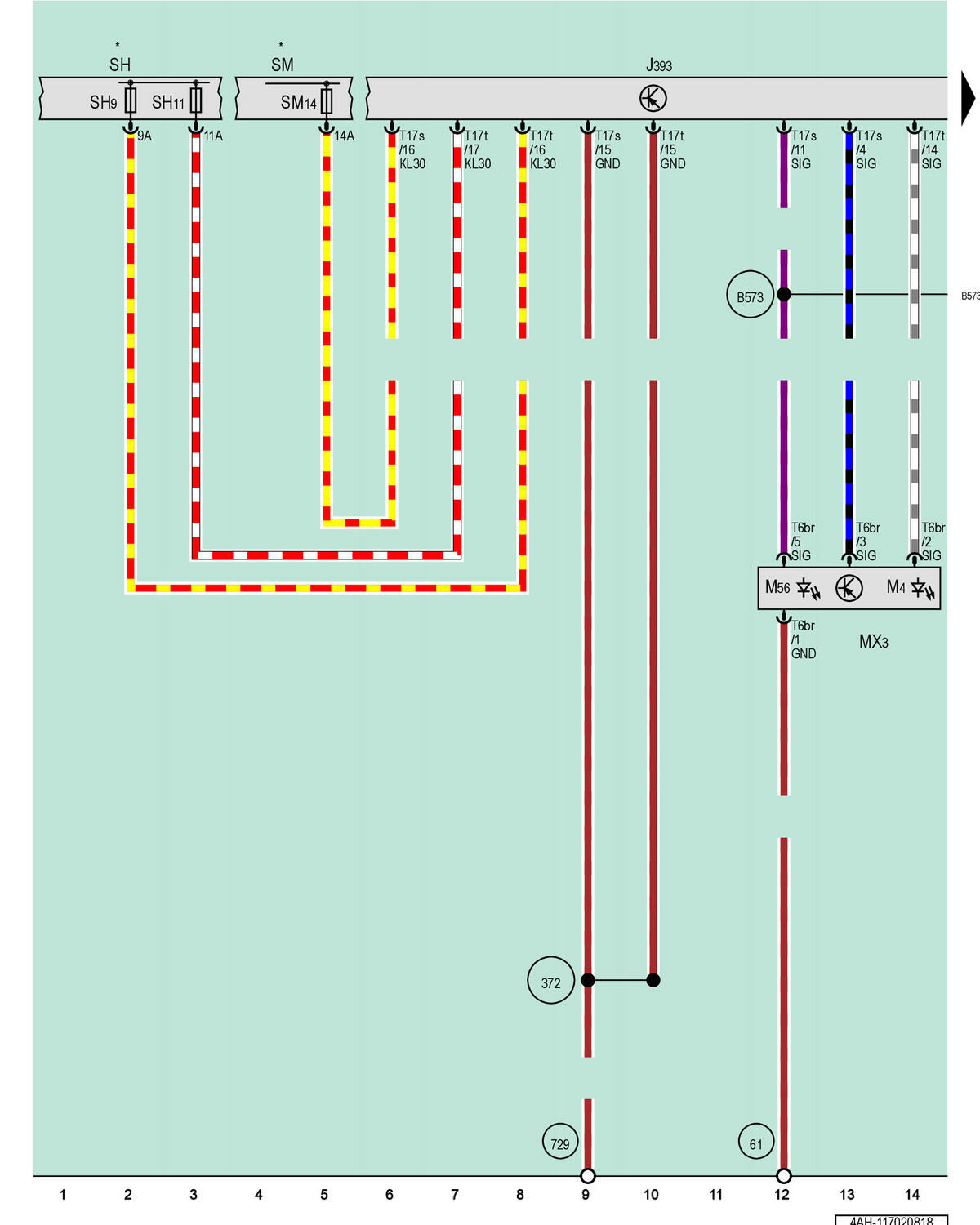

Comfort System Central Control Module, Left Tail Lamp, Fuse Panel H, Fuse Panel M

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

MX3

Left Tail Lamp

M4

Left Tail Lamp Bulb

M56

Left Brake Lamp/Turn Signal Bulb

SH

Fuse Panel H

SH9

Fuse 9 on Fuse Panel H

SH11

Fuse 11 on Fuse Panel H

SM

Fuse Panel M

SM14

Fuse 14 on Fuse Panel M

T6br

6-Pin Connector, Black

T17s

17-Pin Connector, Black

T17t

17-Pin Connector, Brown

61

Ground Connection on Left C-Pillar

372

Ground Connection 7 (in Main Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

B573

Connection 40 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
