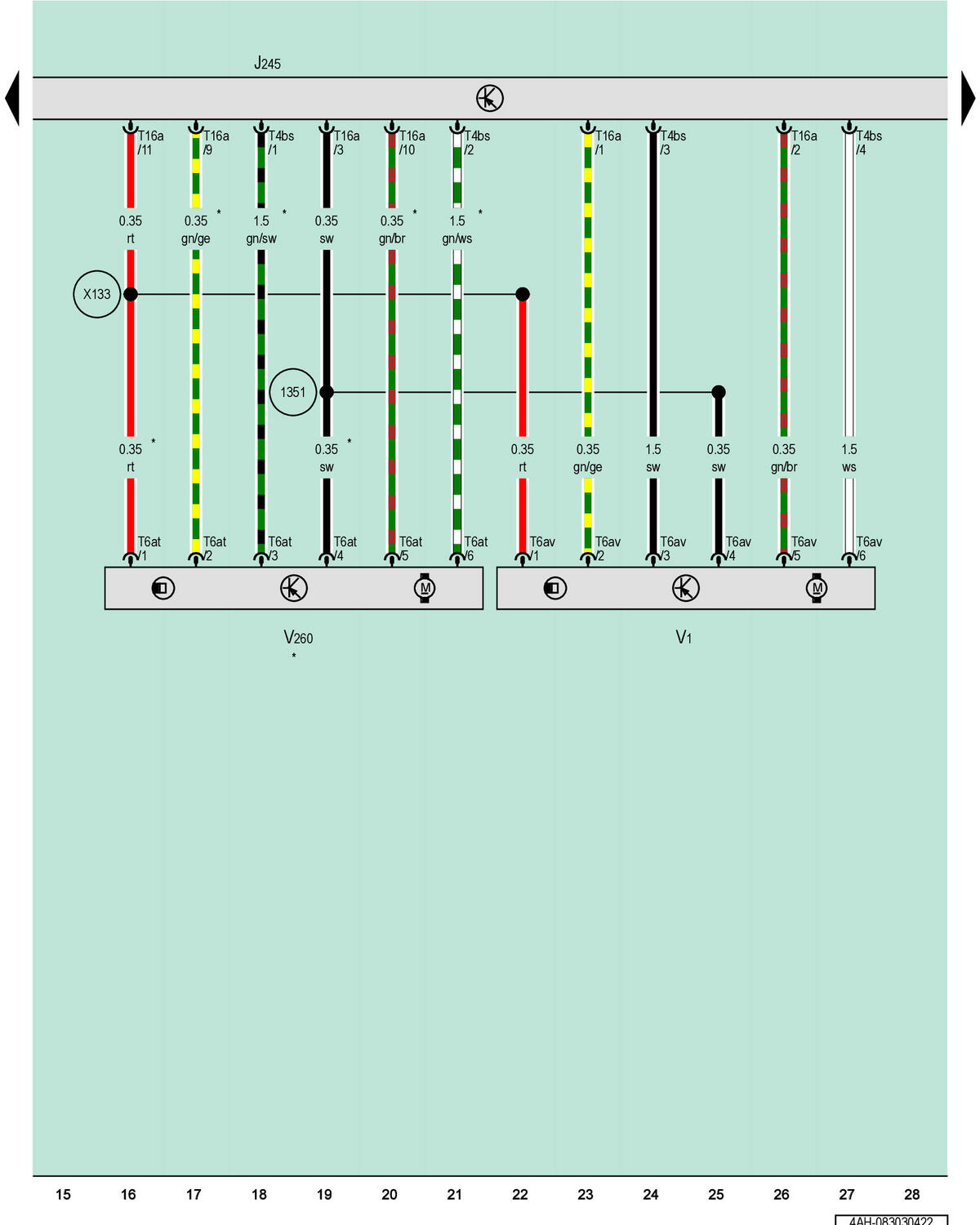

Sunroof Control Module, Sunroof Motor, Sunroof Shade Motor

Courtesy of AUDI OF AMERICA, LLC

J245

Sunroof Control Module

T4bs

4-Pin Connector, Black

T6at

6-Pin Connector, White

T6av

6-Pin Connector, White

T16a

16-Pin Connector, Brown

V1

Sunroof Motor

V260

Sunroof Shade Motor

1351

Ground Connection 9 (in Optional Equipment Wiring Harness)

X133

Connection 6 (in Optional Equipment Wiring Harness)

*

Depending on Equipment
