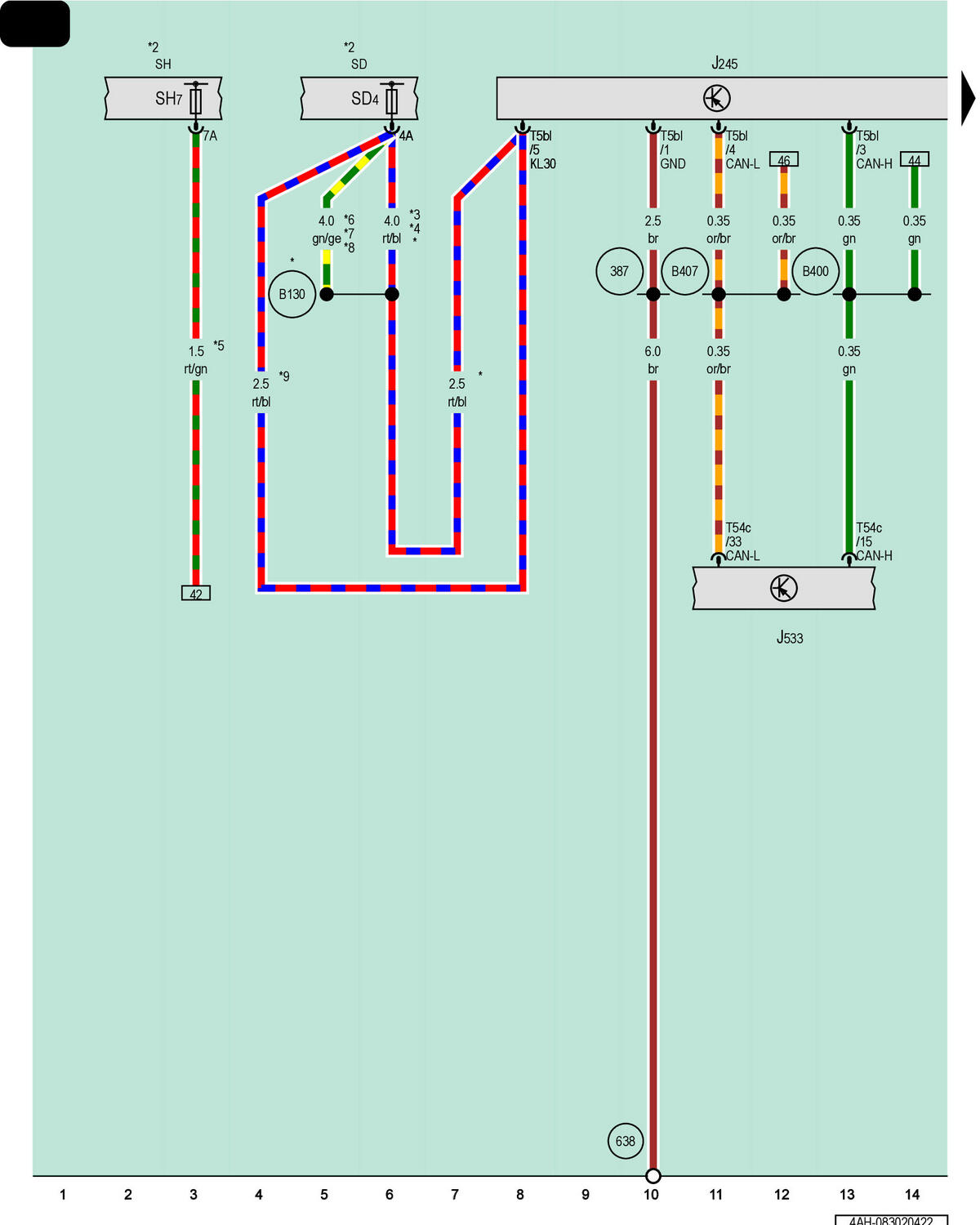

Sunroof Control Module, Data Bus On Board Diagnostic Interface
J245
Sunroof Control Module
J533
Data Bus on Board Diagnostic Interface
SD
Fuse Panel D
SD4
Fuse 4 (On Fuse Panel D)
SH
Fuse Panel H
SH7
Fuse 7 on Fuse Panel H
T5bl
5-Pin Connector, Black
T54c
54-Pin Connector, Black
387
Ground Connection 22 (in Main Wiring Harness)
638
Ground Connection on Right A-Pillar
B130
Sunroof Connection (in Interior Wiring Harness)
B400
Comfort System CAN Bus High Connection 4 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
*
Through August 2021
*2
Refer to Applicable Wiring Diagram for Fuse Positions
*3
Through November 2020
*4
From March 2021
*5
Depending on Equipment
*6
From November 2020
*7
Through March 2021
*8
For Vehicles Without China Equipment
*9
From August 2021
